W-Series | WH231 & WR231 ("SQUAT") Grinder Pump Station

WH231 large

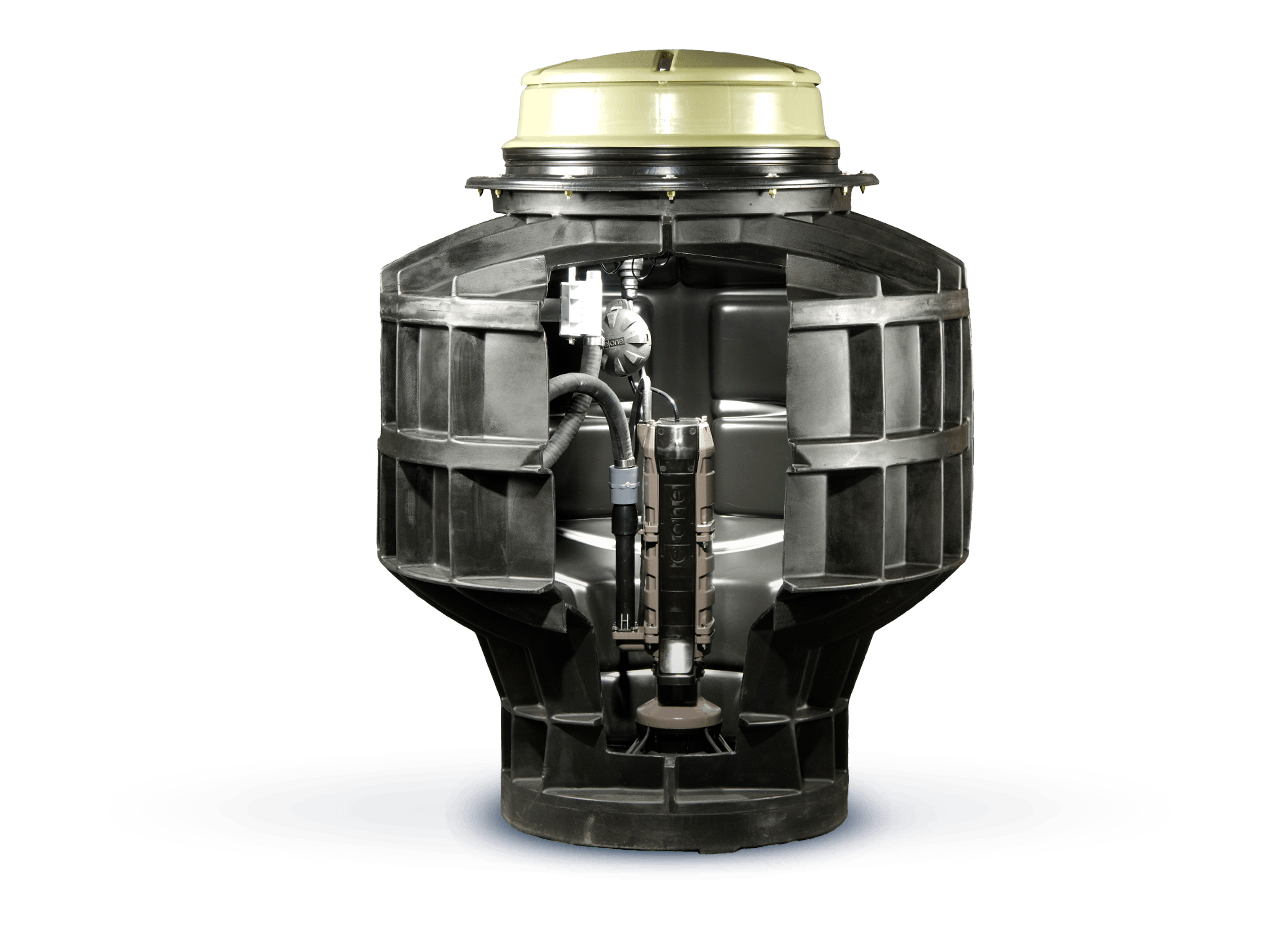

Featuring the E/One Extreme grinder pump, the WH231/WR231 offers a high level of reliability and ruggedness. The lower portion of the tank has a smaller diameter, tapered down to a dish-shaped bottom. These design features reduce the retained volume and promote scouring, which will minimize odor and corrosiveness.

Drawings & Installation Instructions

WH231/WR231 Drawings (PDF, 1 mb)

WH231/WR231 Drawings (zipped DXF, 1 mb)

Extreme Series Pump Curve (PDF)

WH231/WR231 Installation Instructions (PDF, 1.5 mb)

Specification — with "Wired" Level Sensor (DOC)

Specification — with "Wireless" Level Sensor (DOC)

Recommended Alarm Panel

E/One Sentry Protect Plus

Additional alarm panel options are available.

Features

E/One's WH231/WR231 grinder pump station consists of a pump inside an open wetwell tank. The grinder pump, motor controls and level-sensing are integrated into a compact unit, easily removable for service.

  • The WH231 is the “hardwired,” or “wired,” model where a cable connects the motor controls to the level controls through watertight penetrations.
  • The WR231 is the “radio frequency identification” (RFID), or “wireless,” model that uses wireless technology to communicate between the level controls and the motor controls.

Solids are ground into fine particles that pass easily through the pump, check valve and small-diameter pipe lines — even objects that are not normally found in sewage, such as plastic, rubber, fiber, wood, etc. The 1-1/4" discharge connection can be adapted to any piping materials that meet local code requirements. The internal check valve assembly, located in the grinder pump, is custom designed for non-clog, trouble-free operation.

The tank is made of tough corrosion-resistant polyethylene. Designed specifically for low pressure sewer applications, the optimum tank capacity of 237 gallons provides ample storage. A single WH231/WR231 can accommodate flows of up to 850 gallons per day.

Units are available for indoor and outdoor installations. Outdoor units accommodate a wide range of depths. E/One requires the installation of its stainless steel UNI-LATERAL to prevent backflow from the sewer system from entering the grinder pump station.

Inlet Connections: 4" inlet grommet standard for DWV pipe. Other inlet configurations available from factory.

Discharge Connections: Pump discharge terminates in 1-1/4" NPT female thread. Can easily be adapted to 1-1/4" PVC pipe or any other material required by local codes.

Discharge:
15 gpm at 0 psig
11 gpm at 40 psig
7.8 gpm at 80 psig

E/One Grinder Pump Operational and Electrical Information
