E/One Grinder Pump Performance Curve

Download

Pump Performance Curve (PDF)

Sewer System Design

Proper low pressure sewer system design requires minimizing retention time and friction losses while maintaining adequate scouring velocities. E/One's semi-positive displacement pump lends itself to complex system designs because of its nearly vertical pump curve and the resulting predictable flow. A semi-positive displacement pump provides predictable flows and tolerance of widely varying system pressures.

Total Dynamic Head (TDH) Capability

Although a low pressure sewer system has a specific design pressure, it has a tendency to fluctuate. These unpredictable increases and decreases are attributed to the randomness of the number of pumps running on a single sewer system at any given time. A grinder pump must be able to adapt to varying pressures while still providing efficient service.

E/One's semi-positive displacement pump is designed and tested to function properly at 185 feet of total dynamic head (TDH). At this design head, it produces a flow rate of 7.8 gpm. If the system pressure exceeds 185 feet TDH during actual operation, the pump will continue to function normally, but at a slightly reduced flow rate.

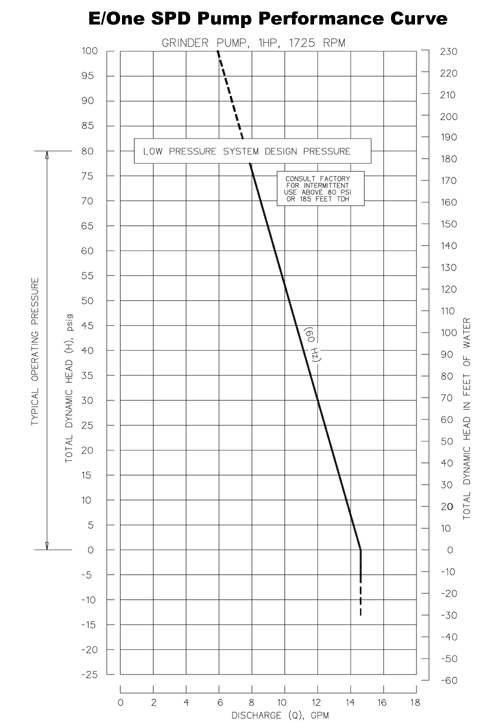

E/One Grinder Pump Performance Curve - Extreme Series Grinder Pumps
