PLC Multiplex Panel for Triplex & Quadplex Grinder Pump Stations

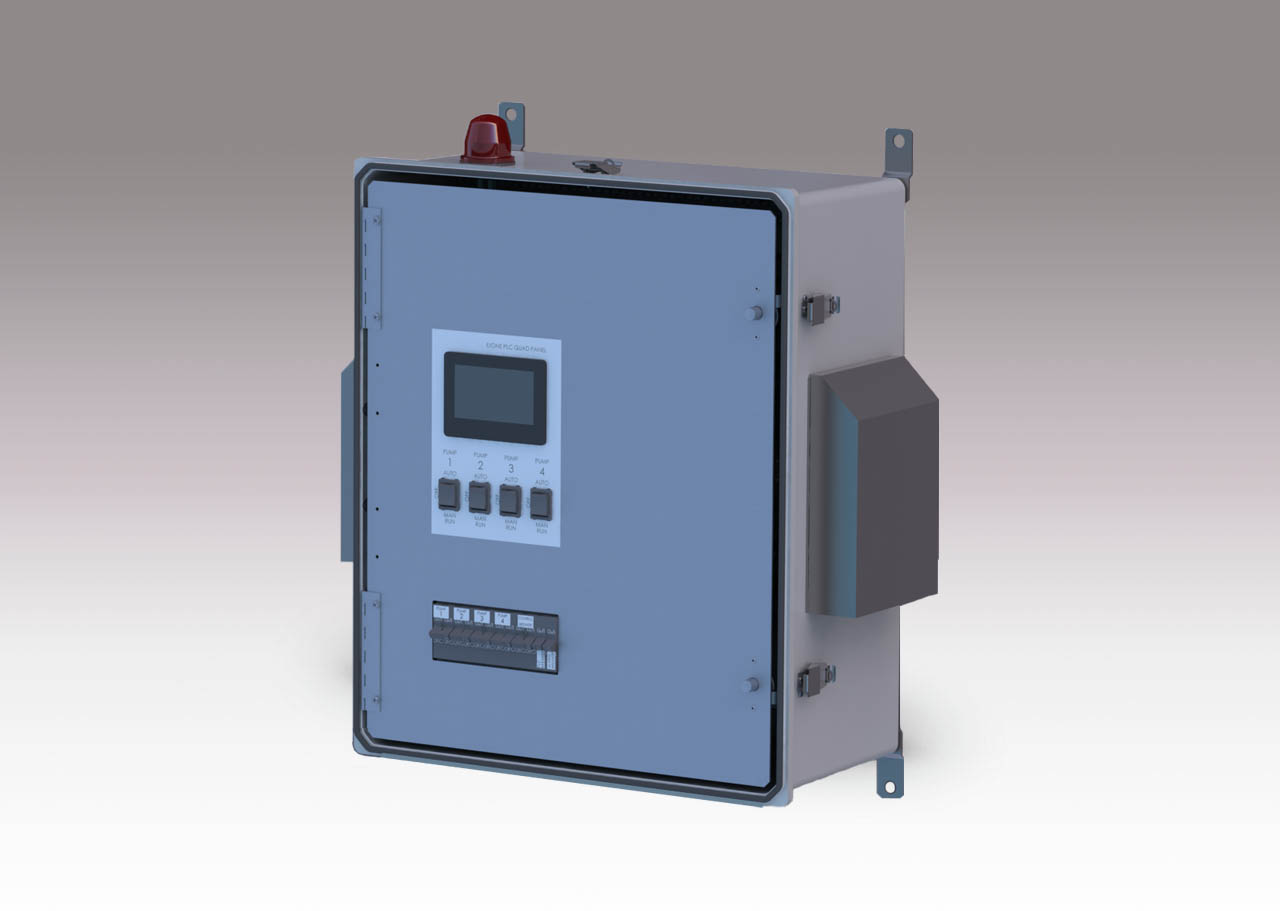

alarm quad panel



The PLC Control Panel is custom designed for use with E/One’s WH483, WH484 or any W-Series fiberglass triplex or quadplex station (hardwired pumps only).

Standard Features

  • Transducer allows for real time, actual fluid level to be used for sequencing and displayed on the touch screen
  • Transducer allows for real time, actual fluid level to be used for sequencing and displayed on the touch screen
  • PLC + transducer in combination allows the user to edit run levels to accommodate many different applications
  • Sequencing method allows for all pumps to be activated before an alarm level is reached, significantly reducing nuisance alarms
  • Sequencing method level loads pumps with respect to run time to keep wear on pumps even
  • Lead-lag relationships determined dynamically based on runtime
  • Sequencing logic skips disabled pumps
  • Features overpressure, excessive runtime, overvoltage, and brownout protection
  • Tracks pump run data (minimum/average/maximum current, voltage, cycle time, etc.)
  • Alarm conditions are tracked in an easy to use interface with an acknowledge feature and time stamps
  • Polymeric or stainless steel enclosure
  • Optional cooling fan

Drawings & Manuals

PLC Multiplex Control Panel Drawing (PDF)

PLC Multiplex Control Panel Drawing (DXF)

PLC Multiplex Control Panel Specification (DOC)

PLC Multiplex Control Panel Installation & Operation Manual (PDF)
