D-Series | DH151 & DR151 Grinder Pump Station

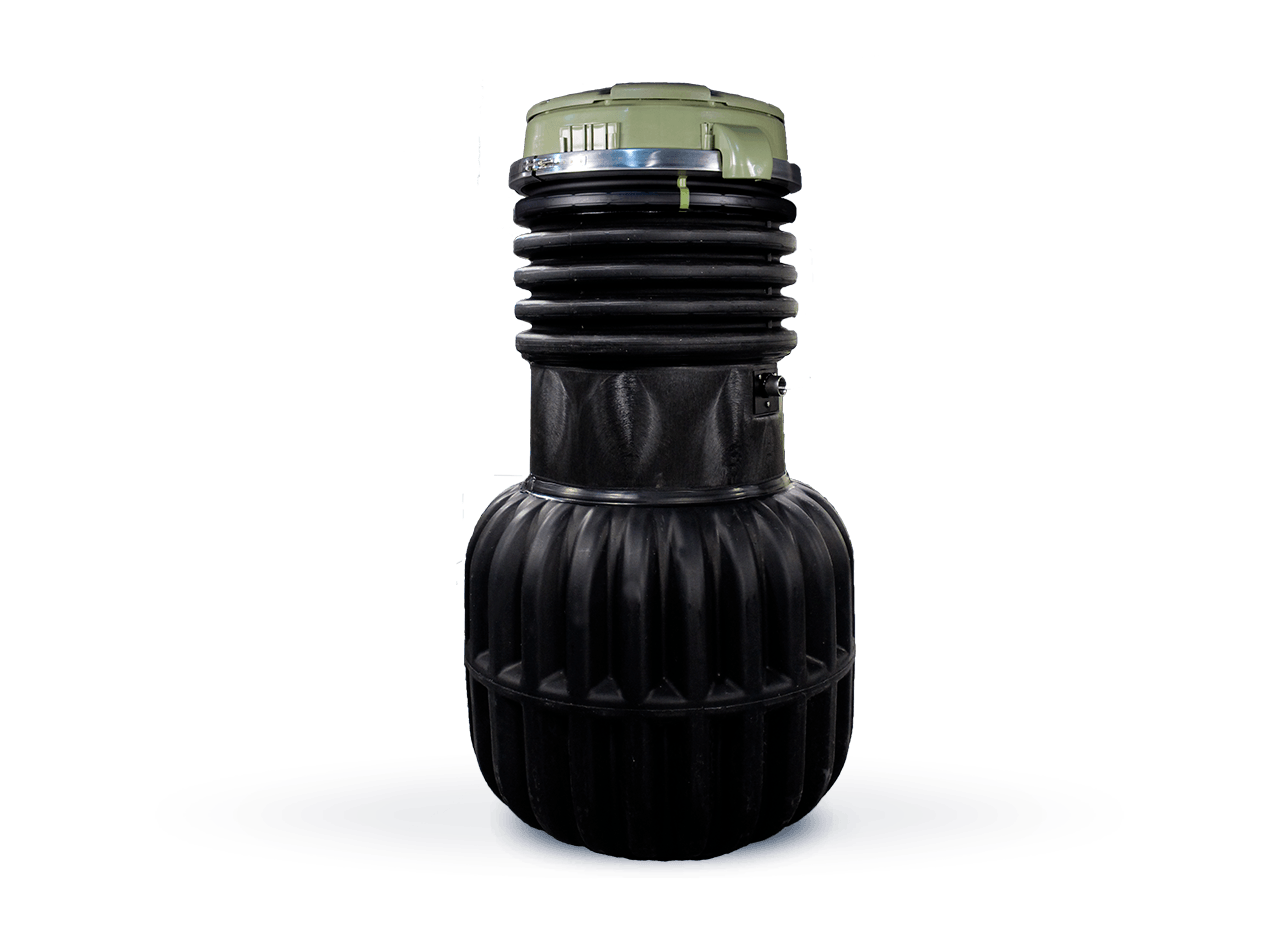

E/One DH151 grinder pump stationThe E/One model DH151/DR151 simplex grinder pump station is an ideal choice for single-family homes. Grinder pumps pump wastewater from the home to the central sewer and/or treatment system through small-diameter pipes.

Featuring the E/One Extreme grinder pump, the DH151/DR151 offers a high level of reliability and ruggedness.

This model was previously known as the Model GP 2012.

Grinder Pump Station Drawings & Installation Instructions

DH151/DR151 Drawings (PDF, 1.5 mb)

DH151/DR151 Drawings (zipped DXF, 1.5 mb)

Extreme Series Pump Curve (PDF)

DH151/DR151 Installation Instructions (PDF, 1.5 mb)

Specification — with "Wired" Level Sensor (DOC)

Specification — with "Wireless" Level Sensor (DOC)

Recommended Alarm Panel

E/One Sentry Protect Plus

Additional alarm panel options are available.

Features

The DH151/DR151 grinder pump station consists of a pump and tank. The grinder pump, motor controls and level-sensing are integrated into a compact unit, easily removable for service.

  • The DH151 is the “hardwired,” or “wired,” model where a cable connects the motor controls to the level controls through watertight penetrations.
  • The DR151 is the “radio frequency identification” (RFID), or “wireless,” model that uses wireless technology to communicate between the level controls and the motor controls.

Solids are ground into fine particles that pass easily through the pump, check valve and small-diameter pipe lines — even objects that should not be in sewage, such as plastic, rubber, fiber, wood, etc. The 1-1/4" discharge connection can be adapted to any piping materials that meet local code requirements.

The tank is made from tough, corrosion-resistant polyethylene and offers 150 gallons of capacity. A single DH151/DR151 is ideal for one, average single-family home and can be used for up to six homes where codes allow and with consent of the factory. The DH151/DR151 can accommodate flows of 1500 gallons per day.

Units are available for indoor and outdoor installations. Outdoor units accommodate a wide range of depths. E/One requires the installation of its stainless steel UNI-LATERAL to prevent backflow from the sewer system from entering the grinder pump station.

Inlet Connections: 4" inlet grommet standard for DWV pipe. Other inlet configurations available from factory.

Discharge Connections: Pump discharge terminates in 1-1/4" NPT female thread. Can easily be adapted to 1-1/4" PVC pipe or any other material required by local codes.

Discharge:
15 gpm at 0 psig
11 gpm at 40 psig
7.8 gpm at 80 psig

E/One Grinder Pump Operational and Electrical Information
