W-Series | WH101F Grinder Pump Station

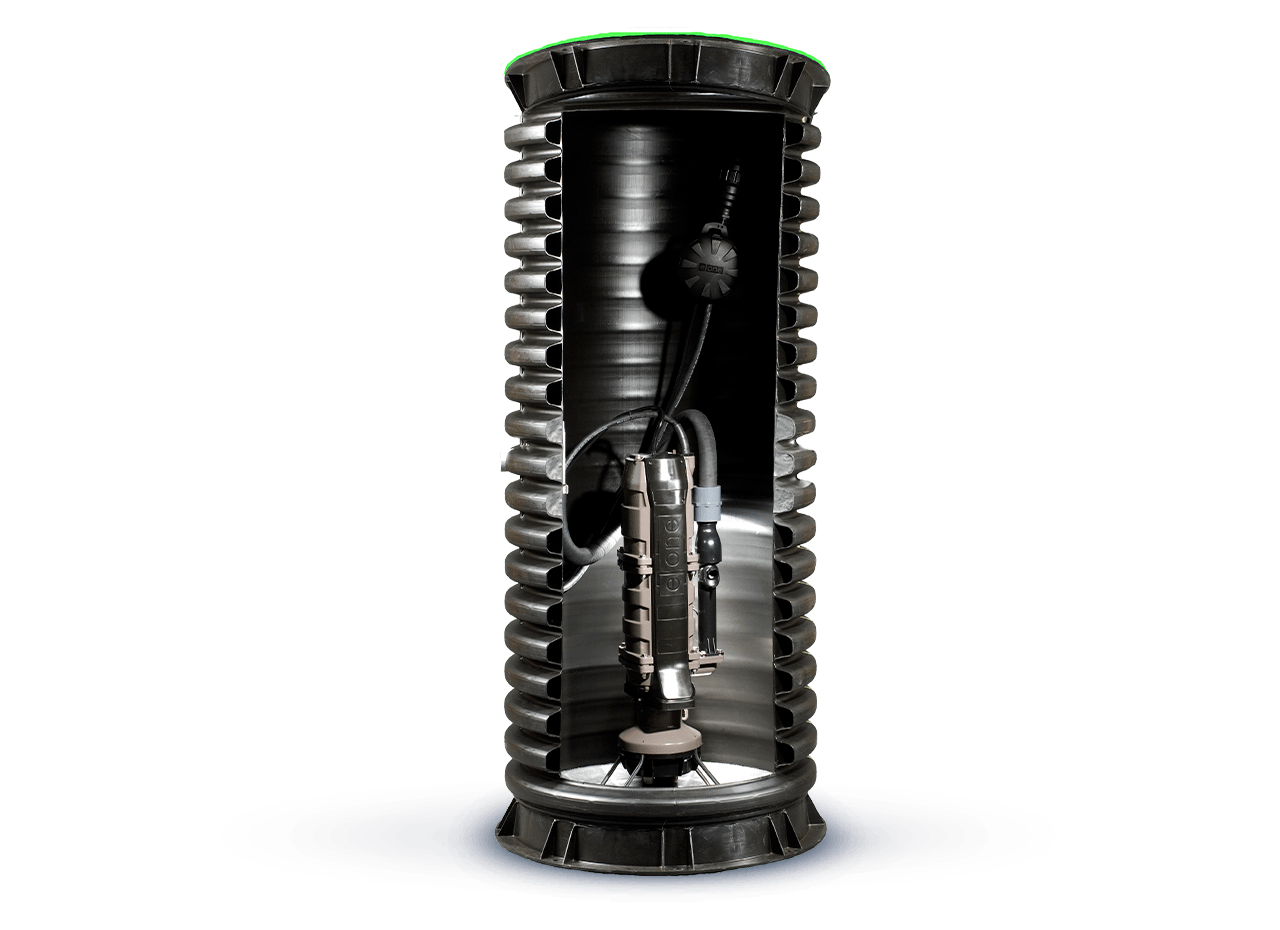

W101F largeThe WH101F features an open-wetwell tank design and is suitable for installation in flood-prone areas. Grinder pumps carry wastewater from the home to the central sewer and/or treatment system through small-diameter pipes.

Featuring the E/One Extreme grinder pump, the WH101F offers a new high of reliability and ruggedness.

Grinder Pump Station Drawings & Installation Instructions

(For Stations Utilizing the Universal Wet Well, Manufactured AFTER December 18, 2023)

WH101F Drawings (PDF, 1.5 mb)

WH101F Drawings (zipped DXF, 2.5 mb)

Extreme Series Pump Curve (PDF)

WH101F Installation Instructions (PDF)

Download Ballast Force Calculations & Assumptions NA0842P01 (PDF, 2.4 mb)

Download Product Specification

Grinder Pump Station Drawings & Installation Instructions

(For Stations Utilizing the Corrugated Wet Well, Manufactured BEFORE December 18, 2023)

WH101F Drawings (PDF, 1.5 mb)

WH101F Drawings (zipped DXF, 2.5 mb)

Extreme Series Pump Curve (PDF)

WH101F Installation Instructions (PDF)

Download Product Specification

Recommended Alarm Panel

E/One Sentry Protect Plus

Additional alarm panel options are available.

Features

E/One's WH101F grinder pump station consists of a pump inside an open wetwell tank. The grinder pump, motor controls and level-sensing are integrated into a compact unit, easily removable for service.

  • The WH101F model has a cable that connects the motor controls to the level controls through watertight penetrations.

The tank is made of tough corrosion-resistant HDPE. The WH101F is a watertight, sealed station that is capable of sustaining a 15-foot flood above the top of the station. This type of flood condition will not affect the continued operation of the pump; the homeowner should rely on uninterrupted service.

The internal check valve assembly, located in the grinder pump, is custom designed for non-clog, trouble-free operation. E/One requires the installation of its stainless steel UNI-LATERAL to prevent backflow from the sewer system from entering the grinder pump station.

Inlet Connections: 4" inlet grommet standard for DWV pipe. Other inlet configurations available from factory.

Discharge Connections: Pump discharge terminates in 1-1/4" NPT female thread or socket fitting. Can easily be adapted to 1-1/4" PVC pipe or any other material required by local codes.

Discharge:
15 gpm at 0 psig
11 gpm at 40 psig
7.8 gpm at 80 psig

E/One Grinder Pump Operational and Electrical Information
