E/One Grinder Pump Station Alarm Panels

E/One offers a line of alarm panels for its grinder pump stations. Panels are available with a range of options and can also be customized.

  • Supplied with audible and visual high level alarms
  • Easily installed in accordance with relevant national and local codes
  • Standard panels are approved by UL, CSA, CE and NSF to ensure high quality and safety
  • Corrosion-proof, NEMA 4X-rated, thermoplastic enclosure
  • A padlock is provided to prevent unauthorized entry

Note: The photos below may show optional features.

Alarm Panels for Simplex Grinder Pump Stations

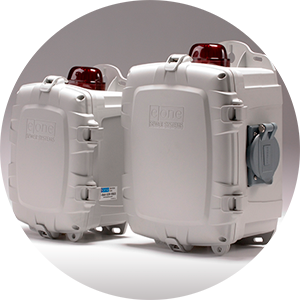

alarm basic panel thumbBasic Panel ›

Circuit breakers, terminal blocks & ground lugs, audible alarm with manual silence, manual run

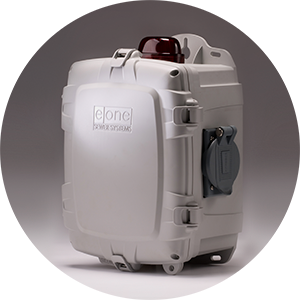

alarms protect package thumbProtect Panel ›

"Basic" package, plus Trouble indication and contact group

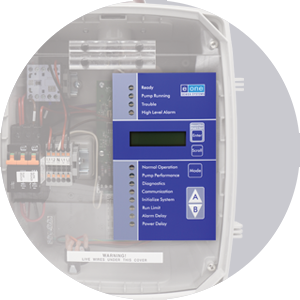

alarm protect plus panel thumb

 Protect Plus Panel ›

"Protect" package, plus predictive status, pre-alarm indication, LCD display, hour meter, cycle counter, alarm delay



Alarm Panels for Duplex Grinder Pump Stations

alarms protect package thumbT260 Panel ›

Circuit breakers, terminal blocks, ground lugs, dry contacts, indicator lights (lead/lag, alarm, run) manual push-to-run. Shown with optional generator receptacle



eone alarm panelE/One Sentry Duplex Protect Plus ›

High/low voltage monitoring; high/low wattage monitoring; extended run time; cycle/event counter; adjustable run time limit; adjustable power-up and alarm delays; and system self-test




Alarm Panels for Quadplex (4 pumps) Grinder Pump Stations

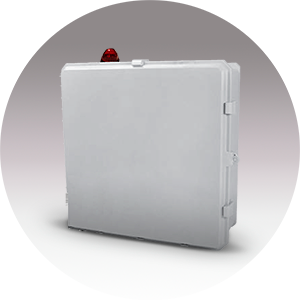

alarm quad panel thumbT260 Alternating Alarm Panel for Quadplex Grinder Pump Stations ›

Circuit breakers; terminal blocks and ground lugs; dry contacts; lead/lag, run and alarm indicator lights; manual push-to-run; generator receptacle with auto transfer; E/One Sentry Advisor available (option)



alarm quad panel thumbProtect Plus Alarm Panel for Quadplex Grinder Pump Stations ›

High/low voltage monitoring; high/low wattage monitoring; extended run time; cycle/event counter; adjustable run time limit; adjustable power-up and alarm delays; system self-test; E/One Sentry Advisor available (option)

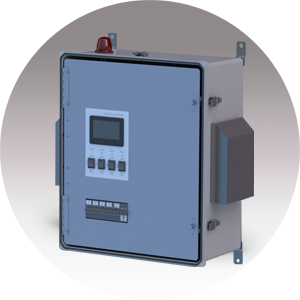

alarm quad panel thumbPLC Control Panel for Quadplex Grinder Pump Stations ›

PLC plus transducer in combination allows the user to edit run levels to accommodate different applications; allow all pumps to activate before an alarm level is reached; overpressure, excessive run time, over-voltage, brownout protection; fiberglass or stainless steel enclosure

E/One Sentry Advisor: Remote Monitoring Option

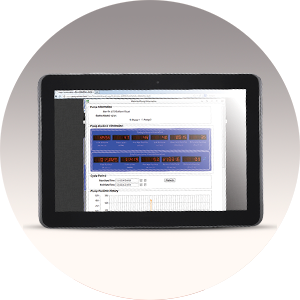

alarms sentry advisor thumb E/One Sentry Advisor ›

Remote monitoring system for E/One grinder pumps. Monitor the station from any web-enabled smartphone, tablet or computer.

Remote Sentry In-Home Display

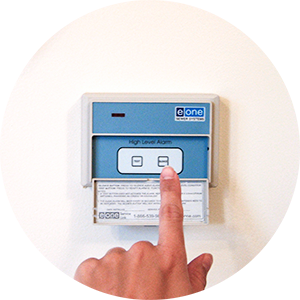

alarms remote sentry thumb Remote Sentry ›

In-home display module is ideal for installations where the grinder pump alarm panel cannot easily be seen
