What type of pump is being serviced?

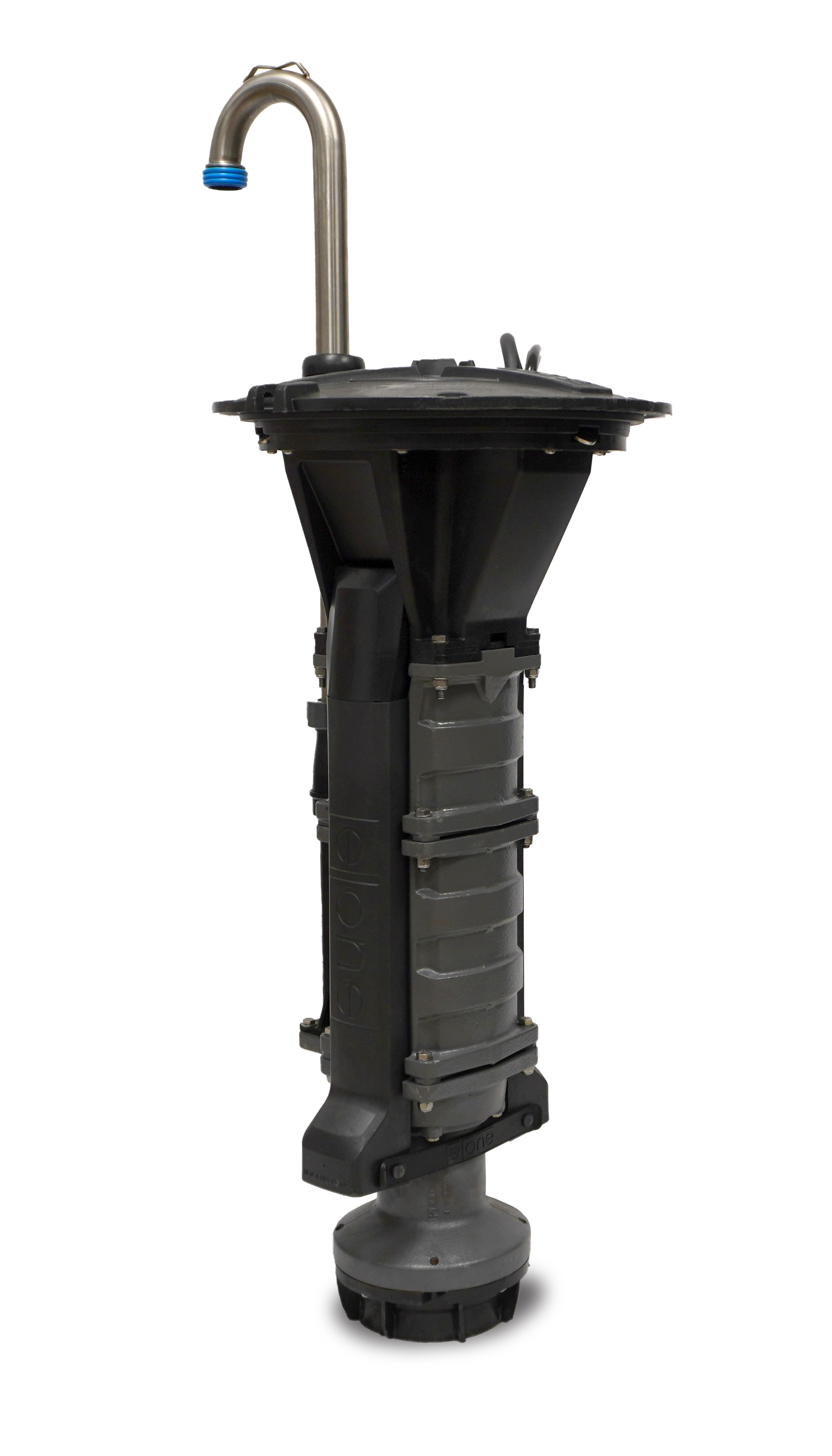

Dry well

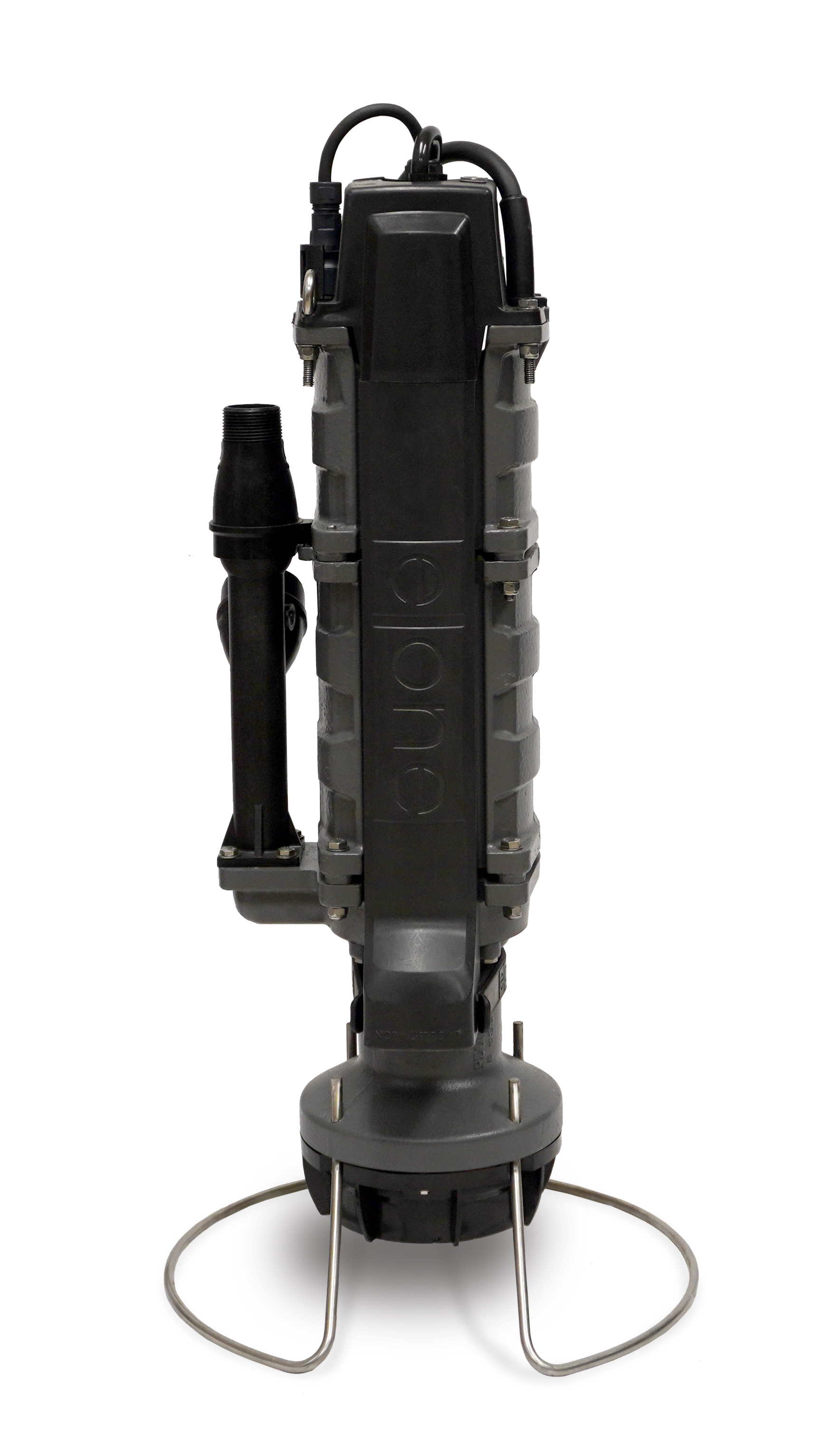

Wet well

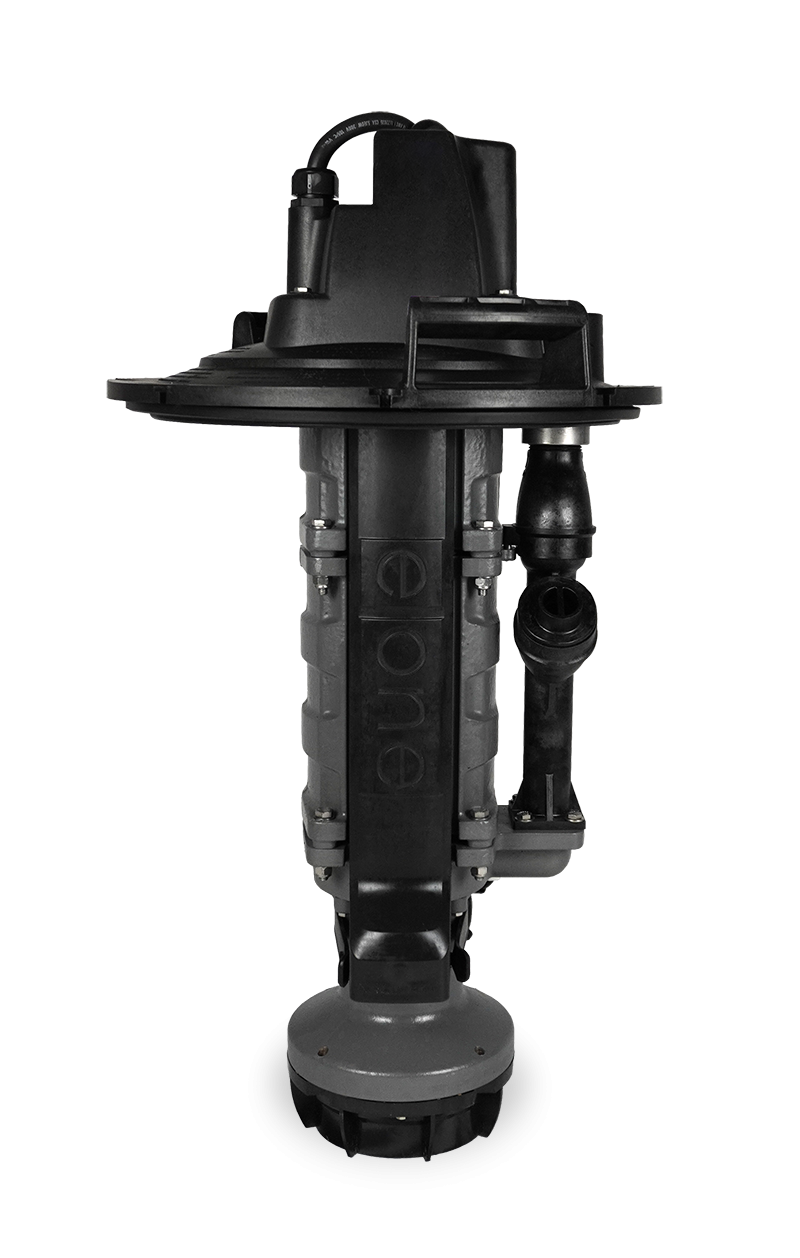

IDU

To identify the type of pump, check the first digit of the pump serial number
D = Dry Well
W = Wet Well
G = Wet Well
I = IDU (Indoor Unit)

What type of pump is being serviced?

Dry well
Wet well

To identify the type of pump, check the first digit of the pump serial number
D = Dry Well
W = Wet Well

What part number is on the alarm switch?

NB0031P02
NB0031P04

Note: The part number is printed on the metal switch cover shown in the second picture above.

What part number is on the alarm switch?

NB0031P02
NB0031P04
NB0031P12

Note: The part number is printed on the metal switch cover shown in the second picture above.

What part number is on the alarm switch?

NB0031P02
NB0031P04
NB0031P12

Note: The part number is printed on the metal switch cover shown in the second picture above.

What part number is on the alarm switch?

NB0031P02
NB0031P04
NB0031P12

Note: The part number is printed on the metal switch cover shown in the second picture above.

What part number is on the alarm switch?

NB0031P02
NB0031P04
NB0031P07
NB0031P12

Note: The Part number is printed on the metal switch cover shown in the second picture above.

What part number is on the alarm switch?

NB0031P02
NB0031P04
NB0031P07
NB0031P12

Note: The Part number is printed on the metal switch cover shown in the second picture above.

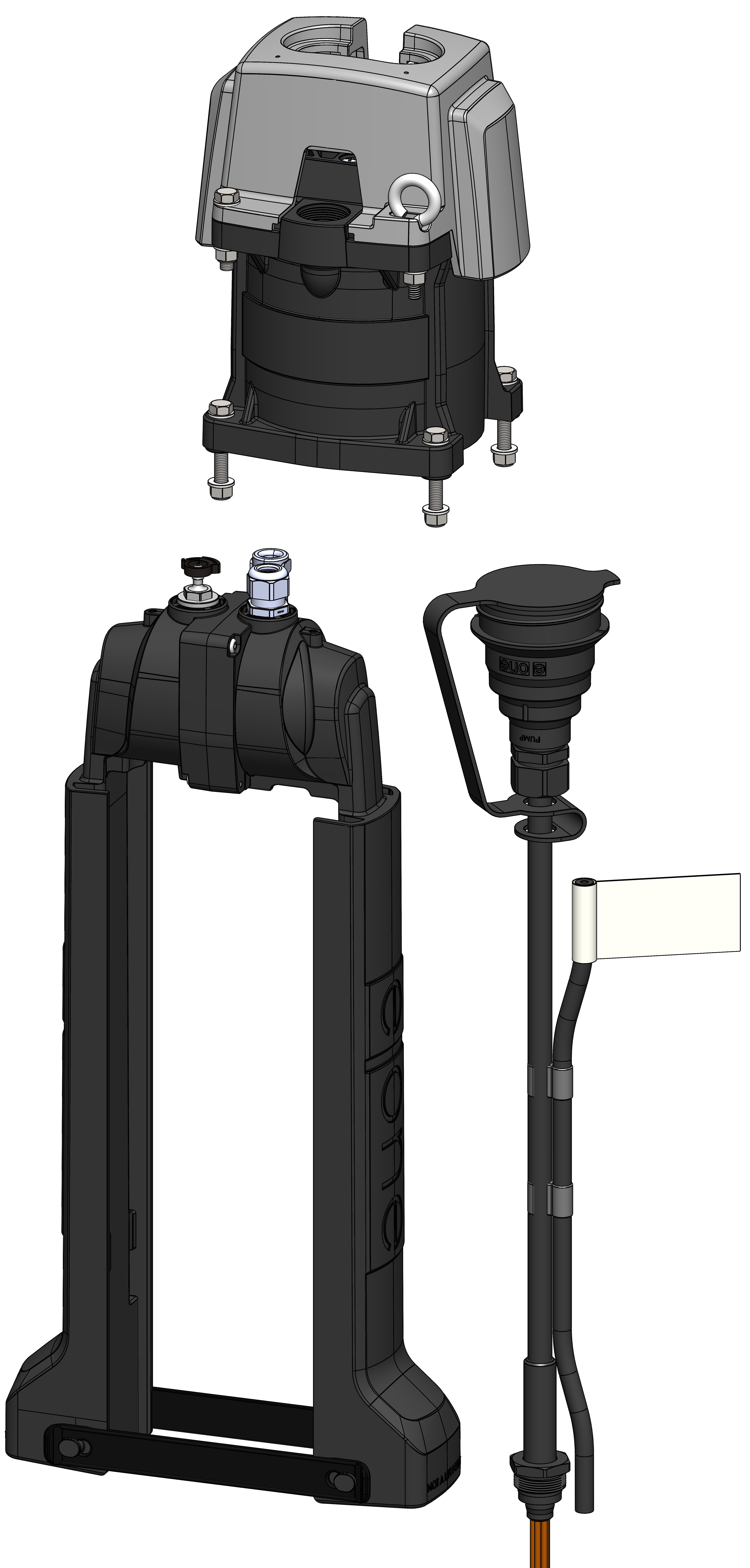

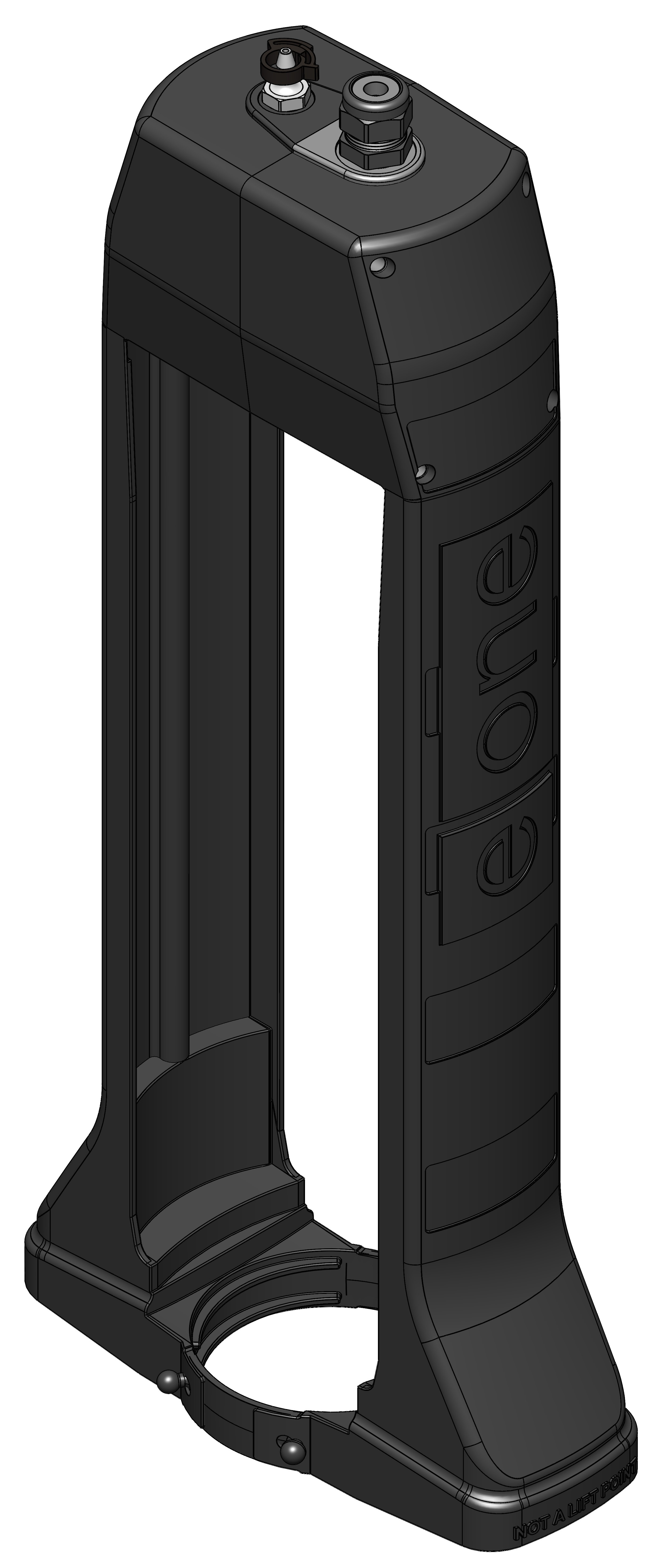

Part Number: ND0157G01
Service Code: 1241

1241 contains: RIGID LSH CONVERSION ASSEMBLY, STANDARD WET WELL, HW

Qty Part Number Description

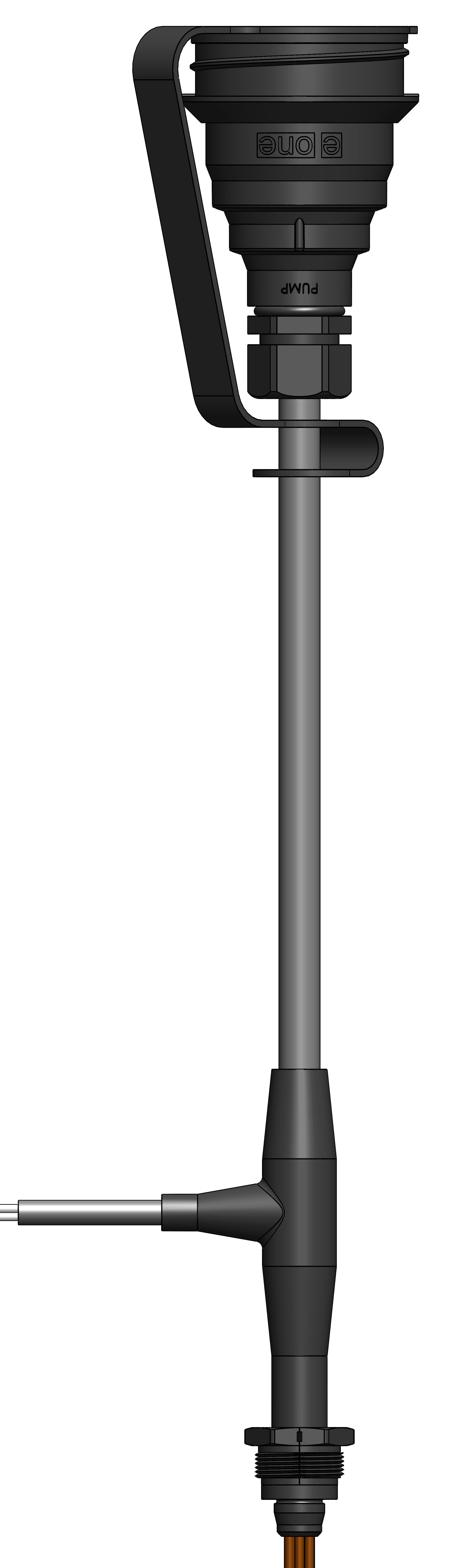

1 ND0128G02 CABLE ASM CORE, SERVICE, 7'
1 NC0564G01 WW, HW CORE COVER SERVICE ASM
1 NC0563G01 STANDARD LSH SERVICE ASM
3 0073-7032 SCREW, HEX HEAD, SS, 5/16-18X2.0
6 0707-7002 WASHER, SS, 5/16"

Part Number: ND0157G04
Service Code: 1244

1244 contains: RIGID LSH CONVERSION ASSEMBLY, AUS/NZ WET WELL, HW

Qty Part Number Description
1 ND0128G02 CABLE ASM CORE, SERVICE, 7'
1 NC0564G01 WW, HW CORE COVER SERVICE ASM
1 NC0563G02 INTL WIRED LSH SERVICE ASM
3 0073-7032 SCREW, HEX HEAD, SS, 5/16-18X2.0
6 0707-7002 WASHER, SS, 5/16"

Part Number: ND0157G09
Service Code: 1255

1255 contains: RIGID LSH CONVERSION ASSEMBLY, JAPAN WET WELL, HW

Qty Part Number Description
1 ND0128G02 CABLE ASM CORE, SERVICE, 7'
1 NC0564G01 WW, HW CORE COVER SERVICE ASM
1 NC0563G07 JAPAN WIRED LSH SERVICE ASM
3 0073-7032 SCREW, HEX HEAD, SS, 5/16-18X2.0
6 0707-7002 WASHER, SS, 5/16"

Part Number: ND0157G11
Service Code: 1257

1257 contains: RIGID LSH CONVERSION ASSEMBLY, STANDARD WET WELL, HW, 12' CABLE

Qty Part Number Description
1 ND0128G03 CABLE ASM CORE, SERVICE, 12'
1 NC0564G01 WW, HW CORE COVER SERVICE ASM
1 NC0563G01 STANDARD LSH SERVICE ASM
3 0073-7032 SCREW, HEX HEAD, SS, 5/16-18X2.0
6 0707-7002 WASHER, SS, 5/16"

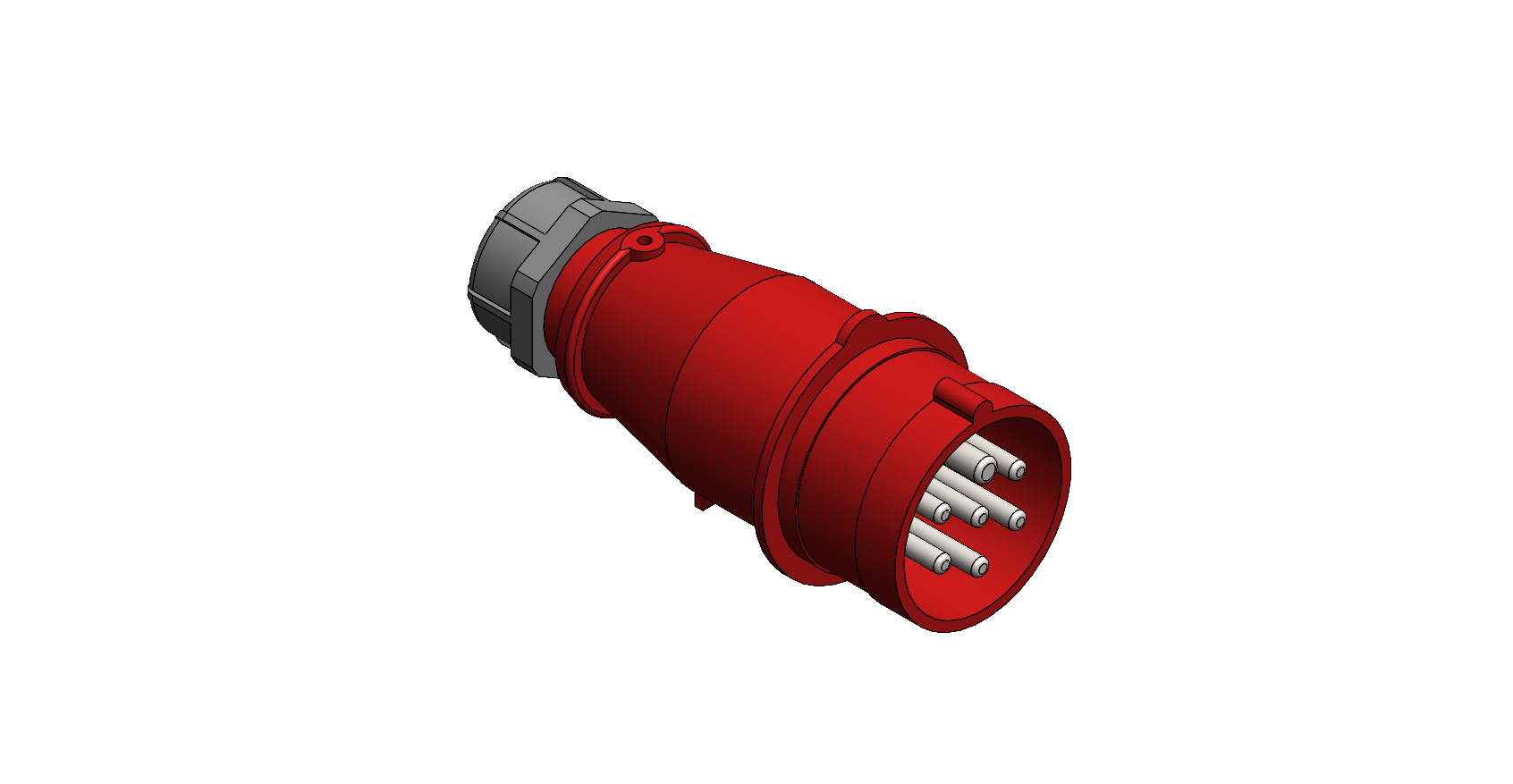

Part Number: ND0157G14

NC0157G14 contains: RIGID LSH CONVERSION ASSEMBLY, NORDIC WET WELL, HW, 7 PIN CABLE

Qty Part Number Description
1 ND0128G23 CABLE ASM CORE, SERVICE, NORDIC, 12'
1 NC0564G01 WW, HW CORE COVER SERVICE ASM
1 NC0563G03 NORDIC WIRED LSH SERVICE ASM
3 0073-7032 SCREW, HEX HEAD, SS, 5/16-18X2.0
6 0707-7002 WASHER, SS, 5/16"

Part Number: ND0157G15

NC0157G15 contains: RIGID LSH CONVERSION ASSEMBLY, NORDIC WET WELL, HW, STANDARD CABLE

Qty Part Number Description
1 ND0128G03 CABLE ASM CORE, SERVICE, 12'
1 NC0564G01 WW, HW CORE COVER SERVICE ASM
1 NC0563G03 NORDIC WIRED LSH SERVICE ASM
3 0073-7032 SCREW, HEX HEAD, SS, 5/16-18X2.0
6 0707-7002 WASHER, SS, 5/16"

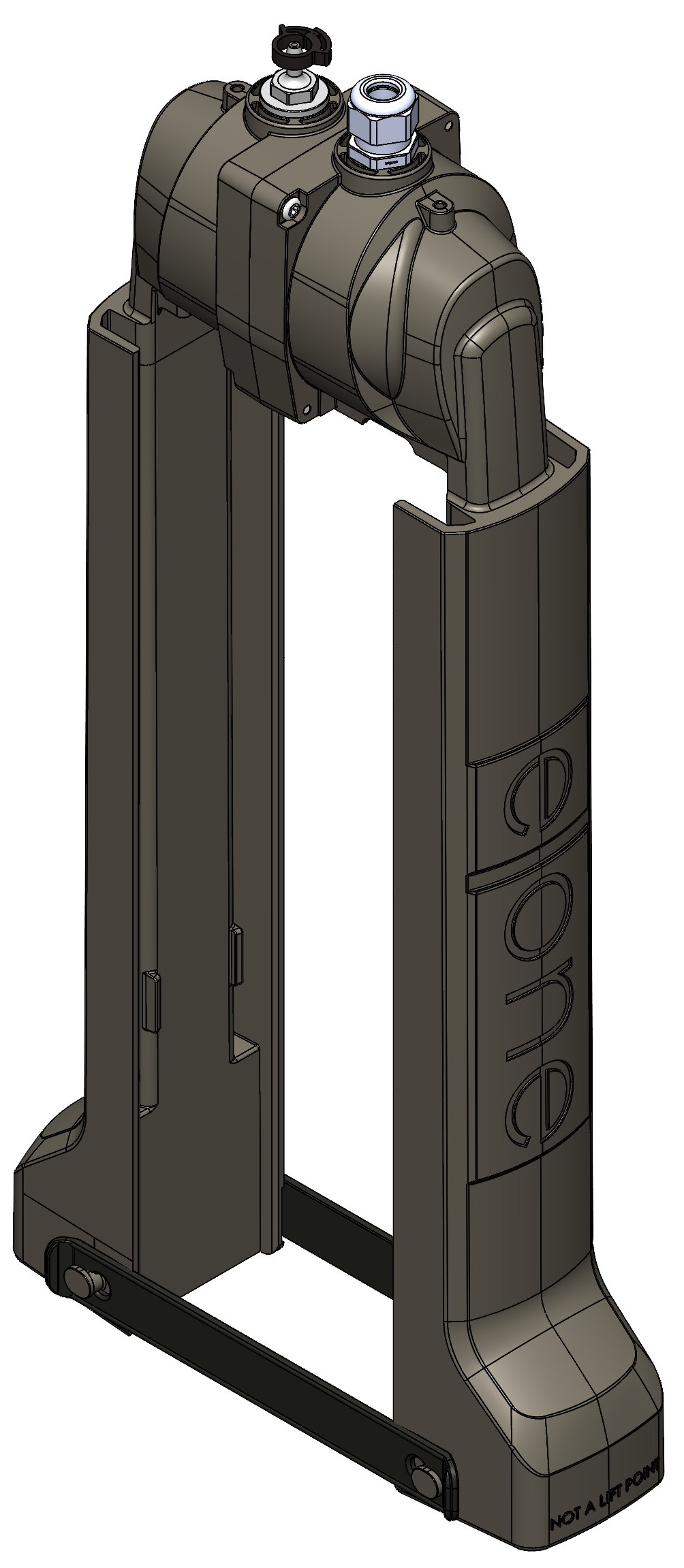

Part Number: NC0563G02
Service Code: 1232

1232 contains: LSA, INTERNATIONAL WIRED, SERVICE (RIGID LSH)

Qty Part Number Description
2 ND0147P01 LSH, EXTREME, RIGID
1 NB0031P01 PRESSURE SWITCH, ON/OFF
1 NB0031P07 PRESSURE SWITCH, ALARM, INTL
1 NC0521P01 LSH SEAL COUPLING
2 0310-235B 235 O-RING, BUNA N
1 NC0533P01 CONTROL CABLE, 4 COND PLUG
2 NB0491P01 LSH STRAP, FLEXIBLE
4 NA0025P01 SCREW, PLASTITE, #10X1.25
1 NB0357G01 FITTING, M20, WITH O-RING
1 PA1815P01 HOSE CLAMP, 7/16, NYLON
1 NA0766G01 CONNECTOR, M20, WITH O-RING
4 PA0491P01 FLAG TERMINAL, 18-22GA, RED
1 NB0520P01 LSA CONNECTOR LOCK

Part Number: NC0563G03
Service Code: 1233

1233 contains: LSA, NORDIC WIRED, SERVICE (RIGID LSH)

Qty Part Number Description
2 ND0147P01 LSH, EXTREME, RIGID
1 NB0031P11 PRESSURE SWITCH, ON/OFF, PLATED
1 NB0031P12 PRESSURE SWITCH, ALARM, PLATED
1 NC0521P01 LSH SEAL COUPLING
2 0310-235B 235 O-RING, BUNA N
1 NC0533P01 CONTROL CABLE, 4 COND PLUG
2 NB0491P01 LSH STRAP, FLEXIBLE
4 NA0025P01 SCREW, PLASTITE, #10X1.25
1 NB0357G01 FITTING, M20, WITH O-RING
1 PA1815P01 HOSE CLAMP, 7/16, NYLON
1 NA0766G01 CONNECTOR, M20, WITH O-RING
4 PA0491P01 FLAG TERMINAL, 18-22GA, RED
1 NB0520P01 LSA CONNECTOR LOCK

Part Number: NC0563G04
Service Code: 1234

1234 contains: LSA, NO CONTRL CABLE, SERVICE (RIGID LSH)

Qty Part Number Description
2 ND0147P01 LSH, EXTREME, RIGID
1 NB0031P01 PRESSURE SWITCH, ON/OFF
1 NB0031P02 PRESSURE SWITCH, ALARM
1 NC0521P01 LSH SEAL COUPLING
2 0310-235B 235 O-RING, BUNA N
2 NB0491P01 LSH STRAP, FLEXIBLE
4 NA0025P01 SCREW, PLASTITE, #10X1.25
1 NB0357G01 FITTING, M20, WITH O-RING
1 PA1815P01 HOSE CLAMP, 7/16, NYLON
1 NA0766G01 CONNECTOR, M20, WITH O-RING
4 PA0491P01 FLAG TERMINAL, 18-22GA, RED

Part Number: NC0563G07
Service Code: 1236

1236 contains: LSA, JAPAN WIRED, SERVICE (RIGID LSH)

Qty Part Number Description
2 ND0147P01 LSH, EXTREME, RIGID
1 NB0031P03 PRESSURE SWITCH, ON/OFF, JAPAN
1 NB0031P04 PRESSURE SWITCH, ALARM, JAPAN
1 NC0521P01 LSH SEAL COUPLING
2 0310-235B 235 O-RING, BUNA N
1 NC0533P01 CONTROL CABLE, 4 COND PLUG
2 NB0491P01 LSH STRAP, FLEXIBLE
4 NA0025P01 SCREW, PLASTITE, #10X1.25
1 NB0357G01 FITTING, M20, WITH O-RING
1 PA1815P01 HOSE CLAMP, 7/16, NYLON
1 NA0766G01 CONNECTOR, M20, WITH O-RING
1 ND0046G14 LCI HARDWIRE, 200V 2L
1 NB0520P01 LSA CONNECTOR LOCK

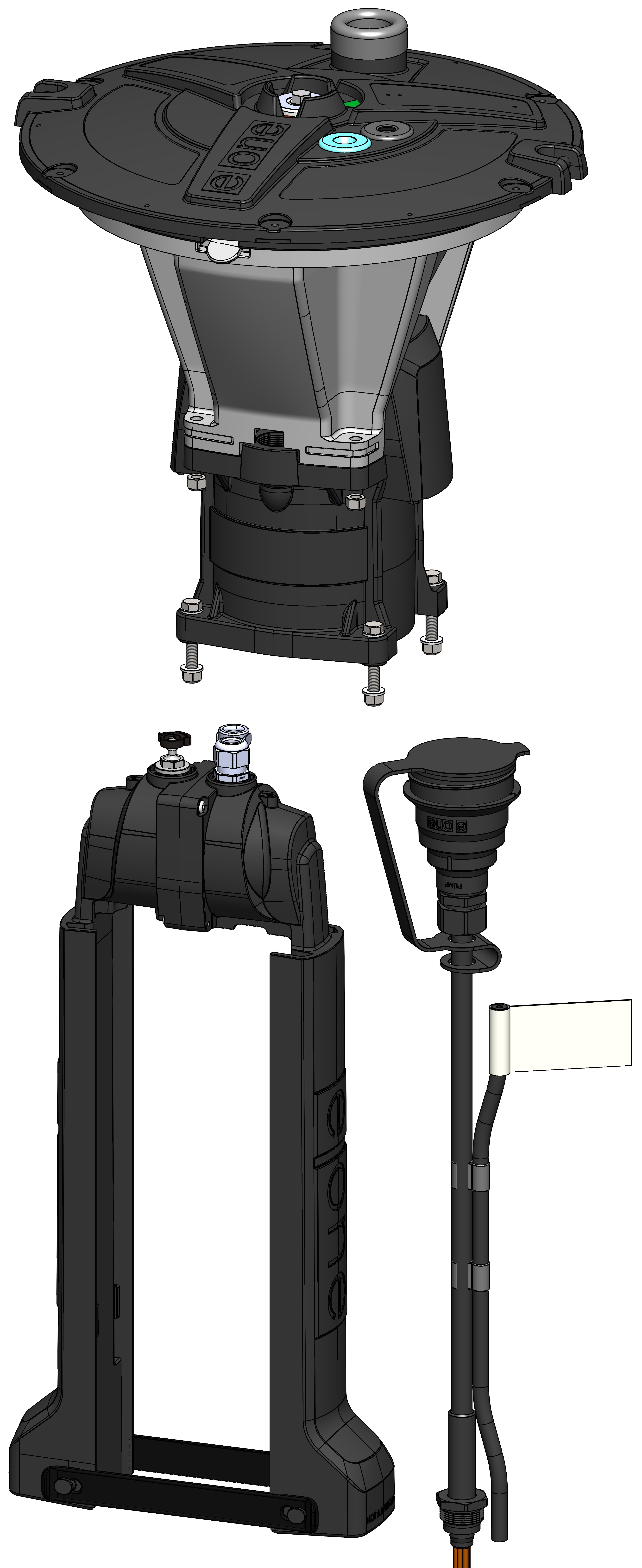

Part Number: ND0157G02
Service Code: 1242

1242 contains: RIGID LSH CONVERSION ASSEMBLY, STANDARD DRY WELL, HW

Qty Part Number Description
1 ND0128G02 CABLE ASM CORE, SERVICE, 7'
1 NC0564G02 DW, HW CORE COVER SERVICE ASM
1 NC0563G01 STANDARD LSH SERVICE ASM
3 0073-7032 SCREW, HEX HEAD, SS, 5/16-18X2.0
6 0707-7002 WASHER, SS, 5/16"

Part Number: ND0157G05
Service Code: 1245

1245 contains: RIGID LSH CONVERSION ASSEMBLY, NORIC DRY WELL, HW

Qty Part Number Description
1 ND0128G23 CABLE ASM CORE, SERVICE, NORDIC, 12'
1 NC0564G04 CORE BOLT DW, HW CORE COVER SERVICE ASM
1 NC0563G03 NORDIC LSH SERVICE ASM
3 0073-7032 SCREW, HEX HEAD, SS, 5/16-18X2.0
6 0707-7002 WASHER, SS, 5/16"

Part Number: ND0157G10
Service Code: 1256

1256 contains: RIGID LSH CONVERSION ASSEMBLY, JAPAN DRY WELL, HW

Qty Part Number Description
1 ND0128G02 CABLE ASM CORE, SERVICE, 7'
1 NC0564G04 CORE BOLT DW, HW CORE COVER SERVICE ASM
1 NC0563G07 JAPAN LSH SERVICE ASM
3 0073-7032 SCREW, HEX HEAD, SS, 5/16-18X2.0
6 0707-7002 WASHER, SS, 5/16"

Part Number: ND0157G12
Service Code: 1258

1258 contains: RIGID LSH CONVERSION ASSEMBLY, STANDARD DRY WELL, HW, 12' CABLE

Qty Part Number Description
1 ND0128G03 CABLE ASM CORE, SERVICE, 12'
1 NC0564G02 DW, HW CORE COVER SERVICE ASM
1 NC0563G01 STANDARD LSH SERVICE ASM
3 0073-7032 SCREW, HEX HEAD, SS, 5/16-18X2.0
6 0707-7002 WASHER, SS, 5/16"

Part Number: ND0157G13

ND0157G13 contains: RIGID LSH CONVERSION ASSEMBLY, CORE BOLT DRY WELL, HW

Qty Part Number Description
1 ND0128G02 CABLE ASM CORE, SERVICE, 7'
1 NC0564G04 CORE BOLT DW, HW CORE COVER SERVICE ASM
1 NC0563G01 STANDARD LSH SERVICE ASM
3 0073-7032 SCREW, HEX HEAD, SS, 5/16-18X2.0
6 0707-7002 WASHER, SS, 5/16"

Part Number: NC0037G11
Service Code: 2214

2214 contains: CONTROL COVER, WITH HANGER, HW

Qty Part Number Description
1 ND0148P01 CONTROL COVER, 2-PORT
1 NA0002P01 PLUG, 1/8" NPT, SS
7 0719-3218SS NUT, STOP, (ELASTIC), SS, 5/16-18
2 0310-429B 429 O-RING, BUNA N
1 0300-001 POLYETHYENE BAG WITH ZIPPER
1 NA0161P02 LOCTITE 598, 0.5OZ TUBE
1 NA0778P02 SEAL PLUG, METRIC
1 0310-118B 118 O-RING, BUNA N
1 NC0308G01 TOP HOUSING ASM, STANDARD

Part Number: NC0037G01
Service Code: 2220

2220 contains: CONTROL COVER, DRY WELL, HW, SERVICE

Qty Part Number Description
1 ND0148P01 CONTROL COVER, 2-PORT
1 NA0002P01 PLUG, 1/8" NPT, SS
7 0719-3218SS NUT, STOP, (ELASTIC), SS, 5/16-18
2 0310-429B 429 O-RING, BUNA N
1 0300-001 POLYETHYLENE BAG WITH ZIPPER
1 NA0161P02 LOCTITE 598, 0.5OZ TUBE
1 NA0778P02 SEAL PLUG, METRIC
1 0310-118B 118 O-RING, BUNA N

Part Numbers: NC0563G04 and NC0037G11
Service Codes: 1234 and 2214

1234 contains: LSA, NO CONTROL CABLE, SERVICE

Qty Part Number Description
2 ND0147P01 LSH, EXTREME, RIGID
1 NB0031P01 PRESSURE SWITCH, ON/OFF
1 NB0031P02 PRESSURE SWITCH, ALARM
1 NC0521P01 LSH SEAL COUPLING
2 0310-235B 235 O-RING, BUNA N
2 NB0491P01 LSH STRAP, FLEXIBLE
4 NA0025P01 SCREW, PLASTITE, #10X1.25
1 NB0357G01 FITTING, M20, WITH O-RING
1 PA1815P01 HOSE CLAMP, 7/16, NYLON
1 NA0766G01 CONNECTOR, M20, WITH ORING
4 PA0491P01 FLAG TERMINAL, 18-22GA, RED

2214 contains: CONTROL COVER, WITH HANGER, HW

Qty Part Number Description
1 ND0148P01 CONTROL COVER, 2-PORT
1 NA0002P01 PLUG, 1/8"NPT, SS
7 0719-3218SS NUT, STOP, (ELASTIC), SS, 5/16-18
2 0310-429B 429 O-RING, BUNA N
1 0300-001 POLYETHYLENE BAG WITH ZIPPER
1 NA0161P02 LOCTITE 598, 0.5OZ TUBE
1 NA0778P02 SEAL PLUG, METRIC
1 0310-118B 118 O-RING, BUNA N
1 NC0308G01 TOP HOUSING ASM, STANDARD

Part Numbers: NC0563G03 and NC0037G01
Service Codes: 1233 and 2220

1233 contains: LSA, NORDIC WIRED, SERVICE

Qty Part Number Description
2 ND0147P01 LSH, EXTREME, RIGID
1 NB0031P11 PRESSURE SWITCH, ON/OFF, PLATED
1 NB0031P12 PRESSURE SWITCH, ALARM, PLATED
1 NC0521P01 LSH SEAL COUPLING
2 0310-235B 235 O-RING, BUNA N
1 NC0533P01 CONTROL CABLE, 4 COND PLUG
2 NB0491P01 LSH STRAP, FLEXIBLE
4 NA0025P01 SCREW, PLASTITE, #10X1.25
1 NB0357G01 FITTING, M20, WITH O-RING
1 PA1815P01 HOSE CLAMP, 7/16, NYLON
1 NA0766G01 CONNECTOR, M20, WITH O-RING
4 PA0491P01 FLAG TERMINAL, 18-22GA, RED
1 NB0520P01 LSA CONNECTOR LOCK

2220 contains: CONTROL COVER, DRY WELL, HW, SERVICE

Qty Part Number Description
1 ND0148P01 CONTROL COVER, 2-PORT
1 NA0002P01 PLUG, 1/8"NPT, SS
7 0719-3218SS NUT, STOP, (ELASTIC), SS, 5/16-18
2 0310-429B 429 O-RING, BUNA N
1 0300-001 POLYETHYLENE BAG WITH ZIPPER
1 NA0161P02 LOCTITE 598, 0.5OZ TUBE
1 NA0778P02 SEAL PLUG, METRIC
1 0310-118B 118 O-RING, BUNA N

Part Numbers: NC0563G04 and NC0037G01
Service Codes: 1234 and 2220

1234 contains: LSA, NO CONTROL CABLE, SERVICE

Qty Part Number Description
2 ND0147P01 LSH, EXTREME, RIGID
1 NB0031P01 PRESSURE SWITCH, ON/OFF
1 NB0031P02 PRESSURE SWITCH, ALARM
1 NC0521P01 LSH SEAL COUPLING
2 0310-235B 235 O-RING, BUNA N
2 NB0491P01 LSH STRAP, FLEXIBLE
4 NA0025P01 SCREW, PLASTITE, #10X1.25
1 NB0357G01 FITTING, M20, W/ O-RING
1 PA1815P01 HOSE CLAMP, 7/16, NYLON
1 NA0766G01 CONNECTOR, M20, WITH ORING
4 PA0491P01 FLAG TERMINAL, 18-22GA, RED

2220 contains: CONTROL COVER, DRY WELL, HW, SERVICE

Qty Part Number Description
1 ND0148P01 CONTROL COVER, 2-PORT
1 NA0002P01 PLUG, 1/8"NPT, SS
7 0719-3218SS NUT, STOP, (ELASTIC), SS, 5/16-18
2 0310-429B 429 O-RING, BUNA N
1 0300-001 POLYETHYLENE BAG WITH ZIPPER
1 NA0161P02 LOCTITE 598, 0.5OZ TUBE
1 NA0778P02 SEAL PLUG, METRIC
1 0310-118B 118 O-RING, BUNA N

Part Numbers: NC0563G07 and NC0037G01
Service Codes: 1236 and 2220

1236 contains: LSA, JAPAN WIRED, SERVICE

Qty Part Number Description
2 ND0147P01 LSH, EXTREME, RIGID
1 NB0031P03 PRESSURE SWITCH, ON/OFF, JAPAN
1 NB0031P04 PRESSURE SWITCH, ALARM, JAPAN
1 NC0521P01 LSH SEAL COUPLING
2 0310-235B 235 O-RING, BUNA N
1 NC0533P01 CONTROL CABLE, 4 COND PLUG
2 NB0491P01 LSH STRAP, FLEXIBLE
4 NA0025P01 SCREW, PLASTITE, #10X1.25
1 NB0357G01 FITTING, M20, WITH O-RING
1 PA1815P01 HOSE CLAMP, 7/16, NYLON
1 NA0766G01 CONNECTOR, M20, WITH O-RING
1 ND0046G14 LCI HARDWIRE, 200V 2L
1 NB0520P01 LSA CONNECTOR LOCK

2220 contains: CONTROL COVER, DRY WELL, HW, SERVICE

Qty Part Number Description
1 ND0148P01 CONTROL COVER, 2-PORT
1 NA0002P01 PLUG, 1/8"NPT, SS
7 0719-3218SS NUT, STOP, (ELASTIC), SS, 5/16-18
2 0310-429B 429 O-RING, BUNA N
1 0300-001 POLYETHYLENE BAG WITH ZIPPER
1 NA0161P02 LOCTITE 598, 0.5OZ TUBE
1 NA0778P02 SEAL PLUG, METRIC
1 0310-118B 118 O-RING, BUNA N

Part Number: NC0563G04 and NC0031G01
Service Code: 1234 and 1269

1234 contains: LSA, NO CONTROL CABLE, SERVICE (RIGID LSH)

Qty Part Number Description
2 ND0147P01 LSH, EXTREME, RIGID
1 NB0031P01 PRESSURE SWITCH, ON/OFF
1 NB0031P02 PRESSURE SWITCH, ALARM
1 NC0521P01 LSH SEAL COUPLING
2 0310-235B 235 O-RING, BUNA N
2 NB0491P01 LSH STRAP, FLEXIBLE
4 NA0025P01 SCREW, PLASTITE, #10X1.25
1 NB0357G01 FITTING, M20, W/ O-RING
1 PA1815P01 HOSE CLAMP, 7/16, NYLON
1 NA0766G01 CONNECTOR, M20, W/ORING
4 PA0491P01 FLAG TERMINAL, 18-22GA, RED

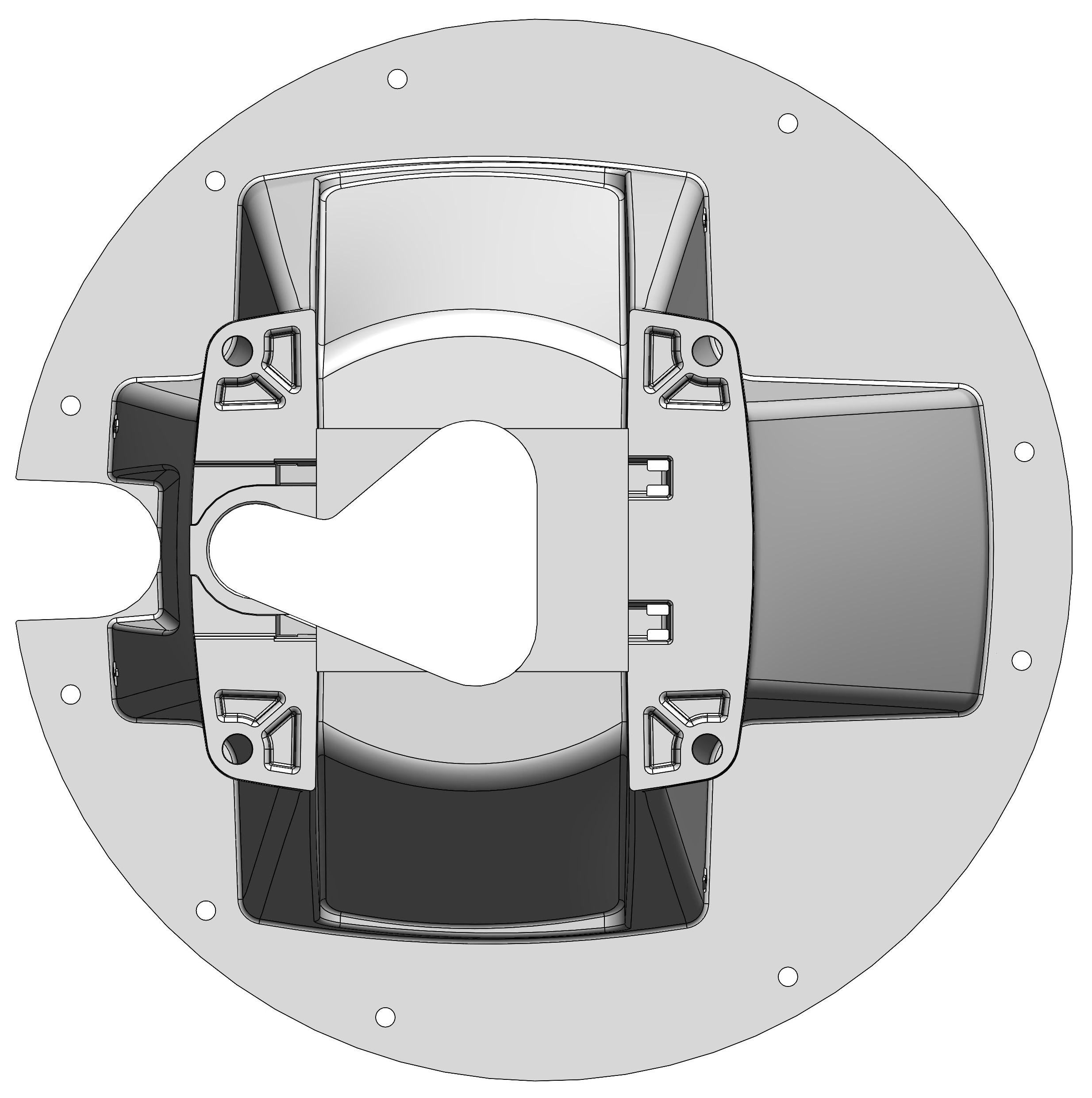

1269 contains: TOP HOUSING, STANDARD SERVICE

Qty Part Number Description
4 0719-3218SS NUT, STOP, (ELASTIC), SS, 5/16-18
2 NA0006P01 PIN, TOP HOUSING
1 NC0308G01 TOP HOUSING ASM, STANDARD

Part Number: NC0563G03 and NC0031G02
Service Code: 1233 and 1270

1233 contains: LSA, NORDIC WIRED, SERVICE (RIGID LSH)

Qty Part Number Description
2 ND0147P01 LSH, EXTREME, RIGID
1 NB0031P11 PRESSURE SWITCH, ON/OFF, PLATED
1 NB0031P12 PRESSURE SWITCH, ALARM, PLATED
1 NC0521P01 LSH SEAL COUPLING
2 0310-235B 235 O-RING, BUNA N
1 NC0533P01 CONTROL CABLE, 4 COND PLUG
2 NB0491P01 LSH STRAP, FLEXIBLE
4 NA0025P01 SCREW, PLASTITE, #10X1.25
1 NB0357G01 FITTING, M20, WITH O-RING
1 PA1815P01 HOSE CLAMP, 7/16, NYLON
1 NA0766G01 CONNECTOR, M20, WITH O-RING
4 PA0491P01 FLAG TERMINAL, 18-22GA, RED
1 NB0520P01 LSA CONNECTOR LOCK

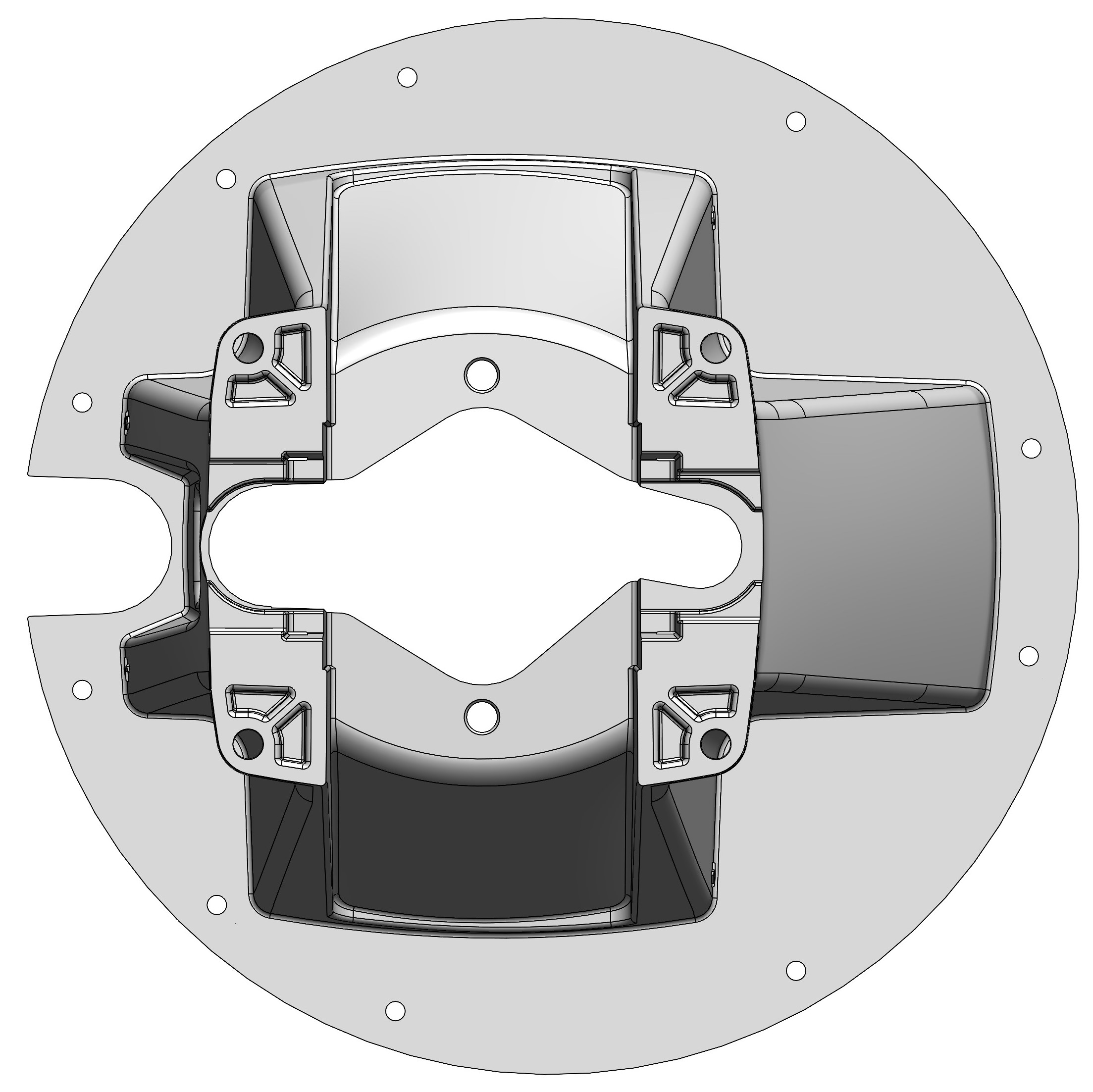

1270 contains: TOP HOUSING, INDOOR/CORE BOLT, SERVICE

Qty Part Number Description
4 0719-3218SS NUT, STOP, (ELASTIC), SS, 5/16-18
2 NA0006P01 PIN, TOP HOUSING

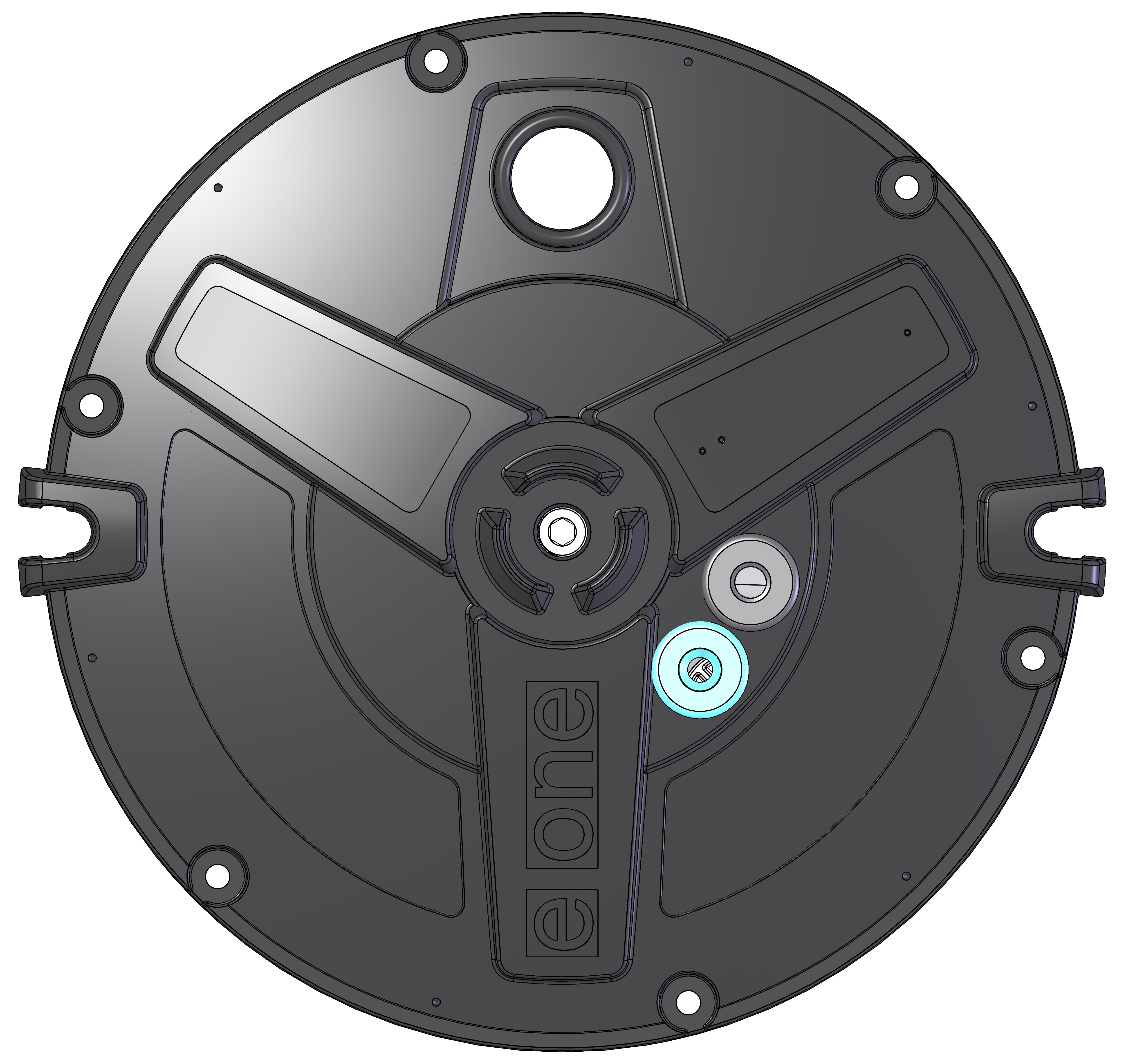

1 NC0308G02 TOP HOUSING ASM, NO LATCH

Part Number: NC0563G04 and NC0031G02
Service Code: 1234 and 1270

1234 contains: LSA, NO CONTROL CABLE, SERVICE (RIGID LSH)

Qty Part Number Description
2 ND0147P01 LSH, EXTREME, RIGID
1 NB0031P01 PRESSURE SWITCH, ON/OFF
1 NB0031P02 PRESSURE SWITCH, ALARM
1 NC0521P01 LSH SEAL COUPLING
2 0310-235B 235 O-RING, BUNA N
2 NB0491P01 LSH STRAP, FLEXIBLE
4 NA0025P01 SCREW, PLASTITE, #10X1.25
1 NB0357G01 FITTING, M20, W/ O-RING
1 PA1815P01 HOSE CLAMP, 7/16, NYLON
1 NA0766G01 CONNECTOR, M20, W/ORING
4 PA0491P01 FLAG TERMINAL, 18-22GA, RED

1270 contains: TOP HOUSING, INDOOR/CORE BOLT, SERVICE

Qty Part Number Description
4 0719-3218SS NUT, STOP, (ELASTIC), SS, 5/16-18
2 NA0006P01 PIN, TOP HOUSING
1 NC0308G02 TOP HOUSING ASM, NO LATCH

Part Number: NC0563G07 and NC0031G02
Service Code: 1236 and 1270

1236 contains: LSA, JAPAN WIRED, SERVICE (RIGID LSH)

Qty Part Number Description
2 ND0147P01 LSH, EXTREME, RIGID
1 NB0031P03 PRESSURE SWITCH, ON/OFF, JAPAN
1 NB0031P04 PRESSURE SWITCH, ALARM, JAPAN
1 NC0521P01 LSH SEAL COUPLING
2 0310-235B 235 O-RING, BUNA N
1 NC0533P01 CONTROL CABLE, 4 COND PLUG
2 NB0491P01 LSH STRAP, FLEXIBLE
4 NA0025P01 SCREW, PLASTITE, #10X1.25
1 NB0357G01 FITTING, M20, WITH O-RING
1 PA1815P01 HOSE CLAMP, 7/16, NYLON
1 NA0766G01 CONNECTOR, M20, WITH O-RING
1 ND0046G14 LCI HARDWIRE, 200V 2L
1 NB0520P01 LSA CONNECTOR LOCK

1270 contains: TOP HOUSING, INDOOR/CORE BOLT, SERVICE

Qty Part Number Description
4 0719-3218SS NUT, STOP, (ELASTIC), SS, 5/16-18
2 NA0006P01 PIN, TOP HOUSING
1 NC0308G02 TOP HOUSING ASM, NO LATCH

Part Number: NC0563G03, NC0031G02, and NC0037G01
Service Code: 1233, 1270, and 2220

1233 contains: LSA, NORDIC WIRED, SERVICE (RIGID LSH)

Qty Part Number Description
2 ND0147P01 LSH, EXTREME, RIGID
1 NB0031P11 PRESSURE SWITCH, ON/OFF, PLATED
1 NB0031P12 PRESSURE SWITCH, ALARM, PLATED
1 NC0521P01 LSH SEAL COUPLING
2 0310-235B 235 O-RING, BUNA N
1 NC0533P01 CONTROL CABLE, 4 COND PLUG
2 NB0491P01 LSH STRAP, FLEXIBLE
4 NA0025P01 SCREW, PLASTITE, #10X1.25
1 NB0357G01 FITTING, M20, WITH O-RING
1 PA1815P01 HOSE CLAMP, 7/16, NYLON
1 NA0766G01 CONNECTOR, M20, WITH O-RING
4 PA0491P01 FLAG TERMINAL, 18-22GA, RED
1 NB0520P01 LSA CONNECTOR LOCK

1270 contains: TOP HOUSING, INDOOR/CORE BOLT, SERVICE

Qty Part Number Description
4 0719-3218SS NUT, STOP, (ELASTIC), SS, 5/16-18
2 NA0006P01 PIN, TOP HOUSING
1 NC0308G02 TOP HOUSING ASM, NO LATCH

2220 contains: CONTROL COVER, DRY WELL, HW, SERVICE

Qty Part Number Description
1 ND0148P01 CONTROL COVER, 2-PORT
1 NA0002P01 PLUG, 1/8"NPT, SS
7 0719-3218SS NUT, STOP, (ELASTIC), SS, 5/16-18
2 0310-429B 429 O-RING, BUNA N
1 0300-001 POLYETHYLENE BAG WITH ZIPPER
1 NA0161P02 LOCTITE 598, 0.5OZ TUBE
1 NA0778P02 SEAL PLUG, METRIC
1 0310-118B 118 O-RING, BUNA N

Part Number: NC0563G04, NC0031G02, and NC0037G01
Service Code: 1234, 1270, and 2220

1234 contains: LSA, NO CONTROL CABLE, SERVICE (RIGID LSH)

Qty Part Number Description
2 ND0147P01 LSH, EXTREME, RIGID
1 NB0031P01 PRESSURE SWITCH, ON/OFF
1 NB0031P02 PRESSURE SWITCH, ALARM
1 NC0521P01 LSH SEAL COUPLING
2 0310-235B 235 O-RING, BUNA N
2 NB0491P01 LSH STRAP, FLEXIBLE
4 NA0025P01 SCREW, PLASTITE, #10X1.25
1 NB0357G01 FITTING, M20, W/ O-RING
1 PA1815P01 HOSE CLAMP, 7/16, NYLON
1 NA0766G01 CONNECTOR, M20, W/ORING
4 PA0491P01 FLAG TERMINAL, 18-22GA, RED

1270 contains: TOP HOUSING, INDOOR/CORE BOLT, SERVICE

Qty Part Number Description
4 0719-3218SS NUT, STOP, (ELASTIC), SS, 5/16-18
2 NA0006P01 PIN, TOP HOUSING
1 NC0308G02 TOP HOUSING ASM, NO LATCH

2220 contains: CONTROL COVER, DRY WELL, HW, SERVICE

Qty Part Number Description
1 ND0148P01 CONTROL COVER, 2-PORT
1 NA0002P01 PLUG, 1/8"NPT, SS
7 0719-3218SS NUT, STOP, (ELASTIC), SS, 5/16-18
2 0310-429B 429 O-RING, BUNA N
1 0300-001 POLYETHYLENE BAG WITH ZIPPER
1 NA0161P02 LOCTITE 598, 0.5OZ TUBE
1 NA0778P02 SEAL PLUG, METRIC
1 0310-118B 118 O-RING, BUNA N

Part Number: NC0563G07, NC0031G02, and NC0037G01
Service Code: 1236, 1270, and 2220

1236 contains: LSA, JAPAN WIRED, SERVICE (RIGID LSH)

Qty Part Number Description
2 ND0147P01 LSH, EXTREME, RIGID
1 NB0031P03 PRESSURE SWITCH, ON/OFF, JAPAN
1 NB0031P04 PRESSURE SWITCH, ALARM, JAPAN
1 NC0521P01 LSH SEAL COUPLING
2 0310-235B 235 O-RING, BUNA N
1 NC0533P01 CONTROL CABLE, 4 COND PLUG
2 NB0491P01 LSH STRAP, FLEXIBLE
4 NA0025P01 SCREW, PLASTITE, #10X1.25
1 NB0357G01 FITTING, M20, WITH O-RING
1 PA1815P01 HOSE CLAMP, 7/16, NYLON
1 NA0766G01 CONNECTOR, M20, WITH O-RING
1 ND0046G14 LCI HARDWIRE, 200V 2L
1 NB0520P01 LSA CONNECTOR LOCK

1270 contains: TOP HOUSING, INDOOR/CORE BOLT, SERVICE

Qty Part Number Description
4 0719-3218SS NUT, STOP, (ELASTIC), SS, 5/16-18
2 NA0006P01 PIN, TOP HOUSING
1 NC0308G02 TOP HOUSING ASM, NO LATCH

2220 contains: CONTROL COVER, DRY WELL, HW, SERVICE

Qty Part Number Description
1 ND0148P01 CONTROL COVER, 2-PORT
1 NA0002P01 PLUG, 1/8"NPT, SS
7 0719-3218SS NUT, STOP, (ELASTIC), SS, 5/16-18
2 0310-429B 429 O-RING, BUNA N
1 0300-001 POLYETHYLENE BAG WITH ZIPPER
1 NA0161P02 LOCTITE 598, 0.5OZ TUBE
1 NA0778P02 SEAL PLUG, METRIC
1 0310-118B 118 O-RING, BUNA N

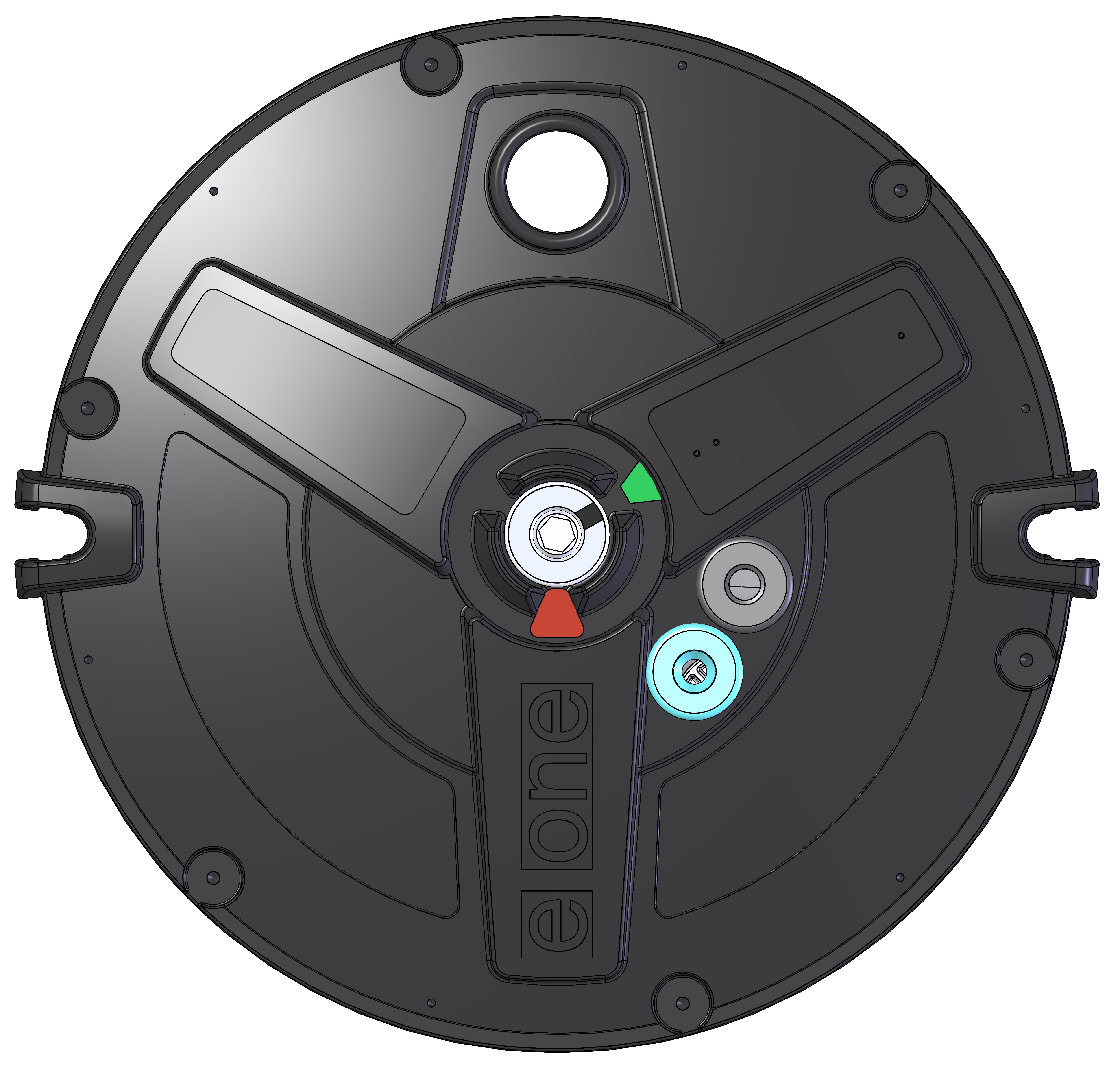

Part Number: NC0031G01
Service Code: 1269

1269 contains: TOP HOUSING, STANDARD SERVICE

Qty Part Number Description
4 0719-3218SS NUT, STOP, (ELASTIC), SS, 5/16-18
2 NA0006P01 PIN, TOP HOUSING
1 NC0308G01 TOP HOUSING ASM, STANDARD

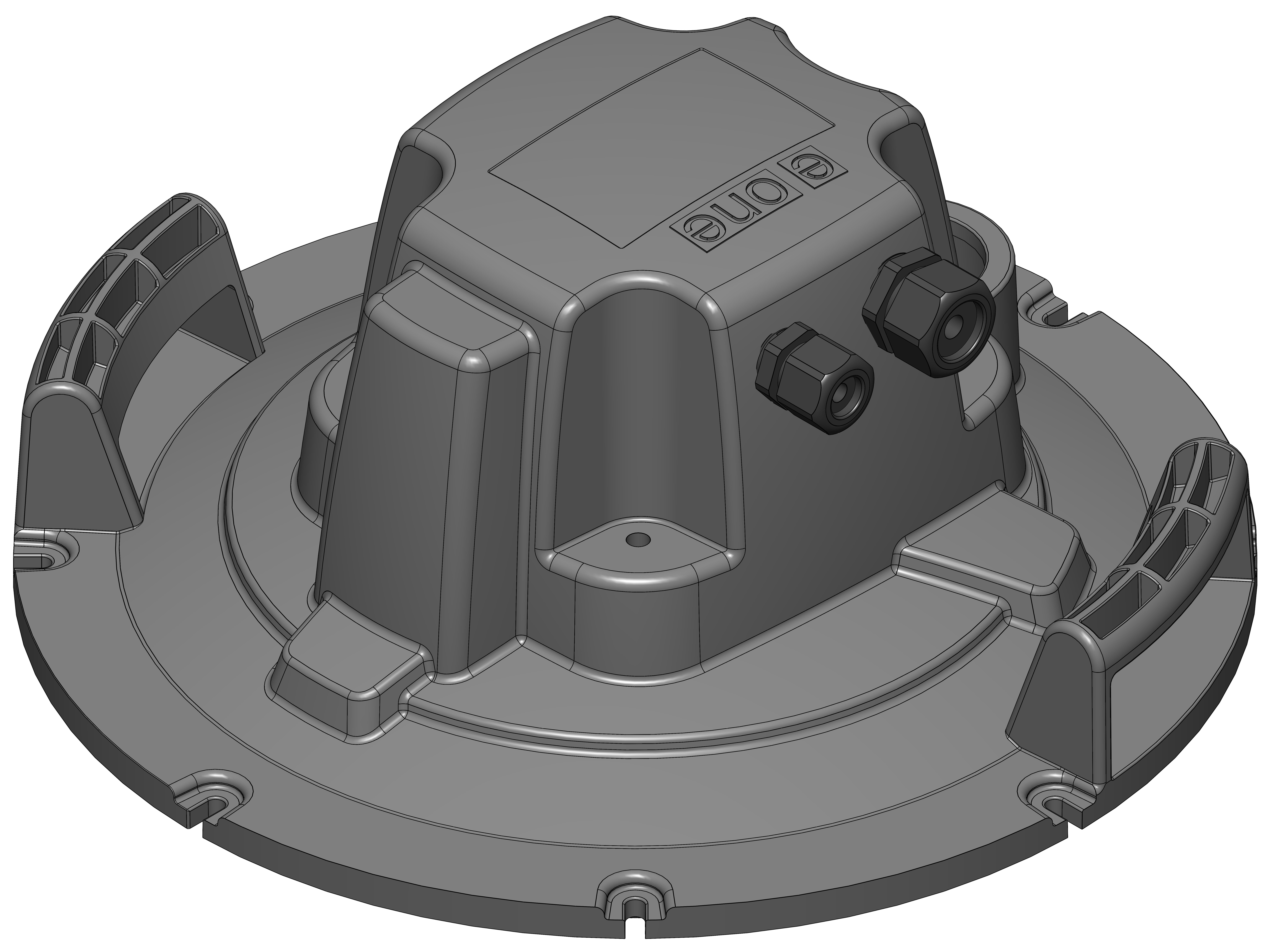

Part Number: NC0031G02
Service Code: 1270

1270 contains: TOP HOUSING, INDOOR/CORE BOLT, SERVICE

Qty Part Number Description
4 0719-3218SS NUT, STOP, (ELASTIC), SS, 5/16-18
2 NA0006P01 PIN,TOP HOUSING
1 NC0308G02 TOP HOUSING ASM, NO LATCH

Part Numbers: NC0031G02 and NC0037G01
Service Codes: 1270 and 2220

1270 contains: TOP HOUSING, INDOOR/CORE BOLT, SERVICE

Qty Part Number Description
4 0719-3218SS NUT, STOP, (ELASTIC), SS, 5/16-18
2 NA0006P01 PIN,TOP HOUSING
1 NC0308G02 TOP HOUSING ASM, NO LATCH

2220 contains: CONTROL COVER, DRY WELL, HW, SERVICE

Qty Part Number Description
1 ND0148P01 CONTROL COVER, 2-PORT
1 NA0002P01 PLUG, 1/8"NPT, SS
7 0719-3218SS NUT, STOP, (ELASTIC), SS, 5/16-18
2 0310-429B 429 O-RING, BUNA N
1 0300-001 POLYETHYLENE BAG WITH ZIPPER
1 NA0161P02 LOCTITE 598, 0.5OZ TUBE
1 NA0778P02 SEAL PLUG, METRIC
1 0310-118B 118 O-RING, BUNA N

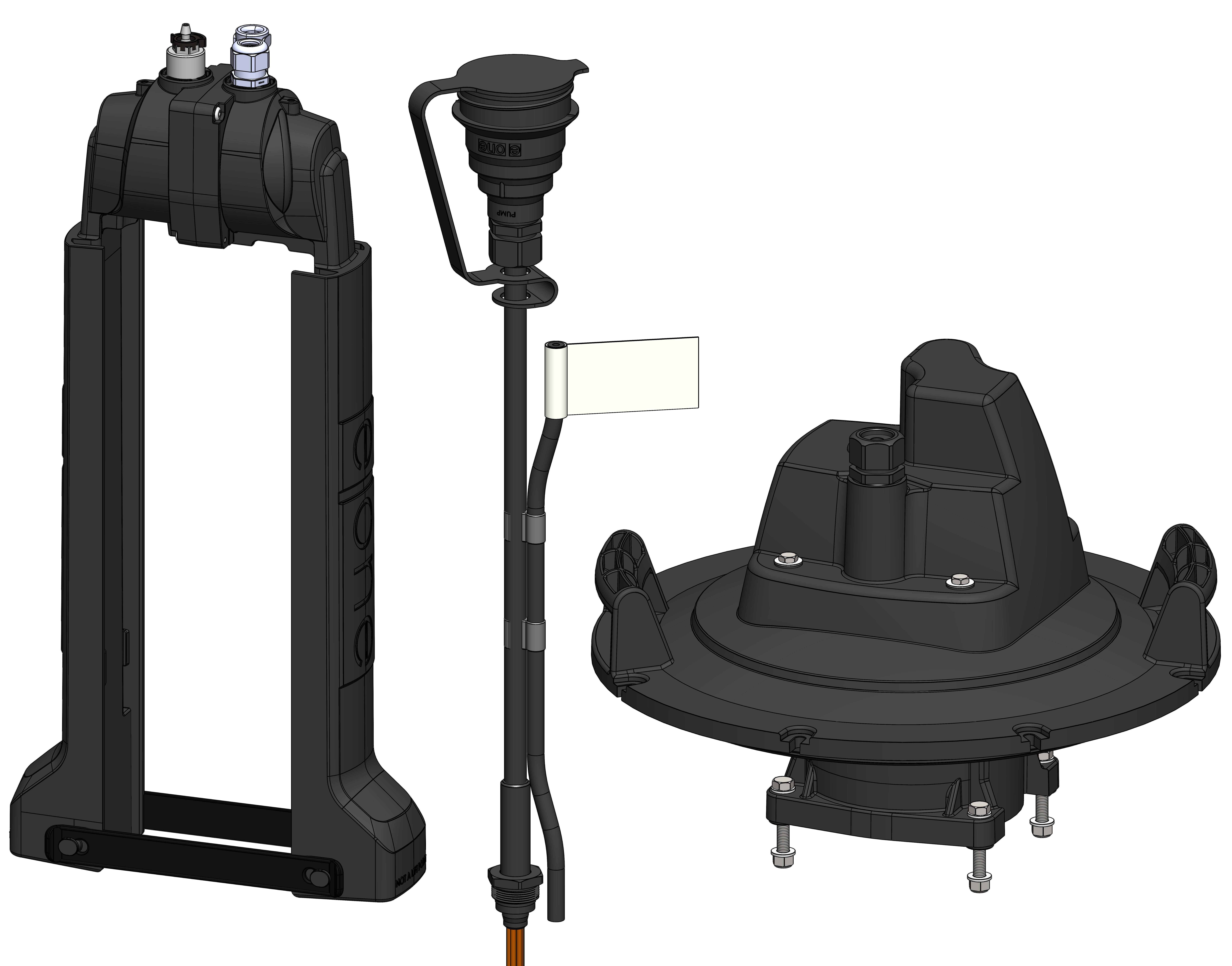

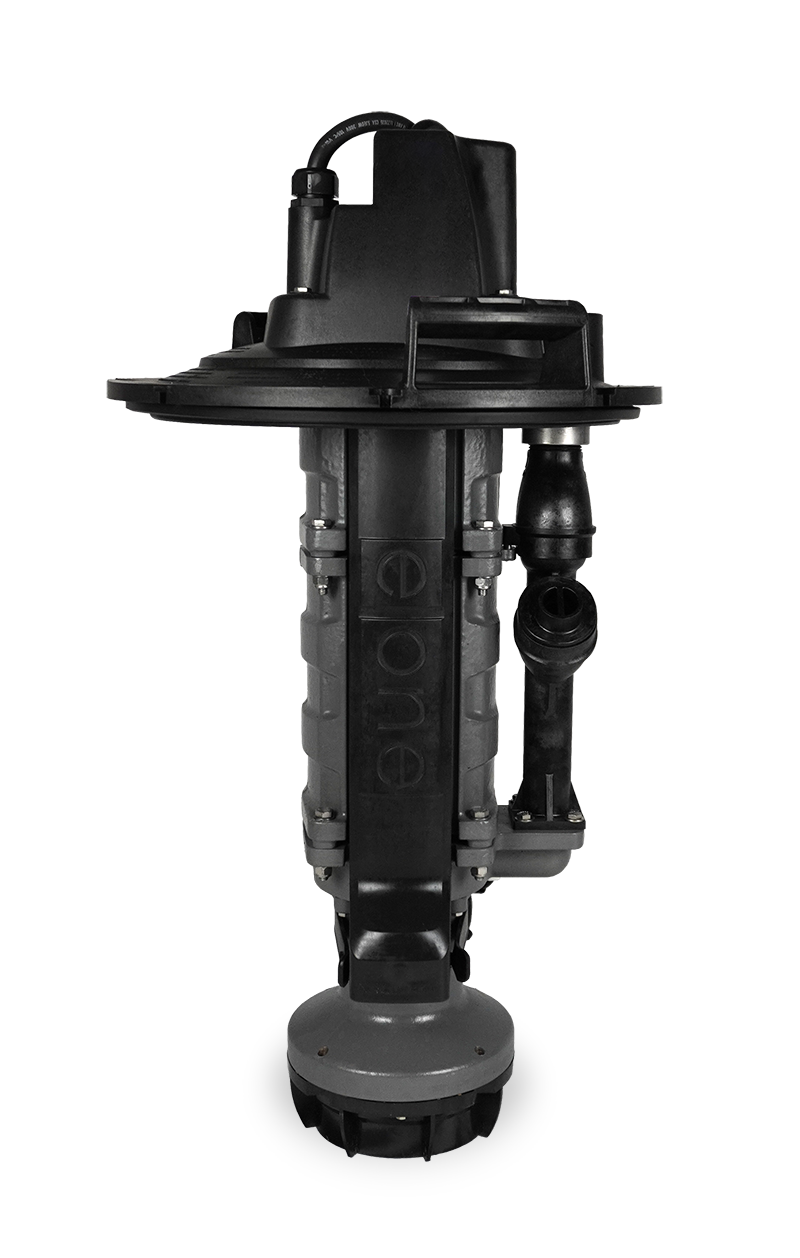

Part Number: ND0157G08
Service Code: 1249

1249 contains: RIGID LSH CONVERSION ASSEMBLY, IDU

Qty Part Number Description
1 ND0128G03 CABLE ASM CORE, SERVICE, 12'
1 NC0564G07 IDU, HW CORE COVER SERVICE ASM
1 NC0563G06 IDU LSH SERVICE ASM
3 0073-7032 SCREW, HEX HEAD, SS, 5/16-18X2.0
6 0707-7002 WASHER, SS, 5/16"

Part Number: NC0563G06
Service Code: 1235

1235 contains: LSA, IDU WIRED, SERVICE (RIGID LSH)

Qty Part Number Description
2 ND0147P01 LSH, EXTREME, RIGID
1 NB0031P05 PRESSURE SWITCH, ON/OFF, IDU
1 NB0031P06 PRESSURE SWITCH, ALARM, IDU
1 NC0521P01 LSH SEAL COUPLING
2 NC0533P01 CONTROL CABLE, 4 COND PLUG
1 0310-235B 235 O-RING, BUNA N
2 NB0491P01 LSH STRAP, FLEXIBLE
4 NA0025P01 SCREW, PLASTITE, #10X1.25
1 NB0357G03 BARBED FTG, M20, EXTENDED W/ O-RING
1 PA1815P01 HOSE CLAMP, 7/16, NYLON
1 NA0766G01 CONNECTOR, M20, WITH ORING
4 PA0491P01 FLAG TERMINAL, 18-22GA, RED
1 NB0520P01 LSA CONNECTOR LOCK

Part Numbers: NC0563G06 and NC0037G01
Service Codes: 1235 and 2220

1235 contains: LSA, IDU WIRED, SERVICE (RIGID LSH)

Qty Part Number Description
2 ND0147P01 LSH, EXTREME, RIGID
1 NB0031P05 PRESSURE SWITCH, ON/OFF, IDU
1 NB0031P06 PRESSURE SWITCH, ALARM, IDU
1 NC0521P01 LSH SEAL COUPLING
2 NC0533P01 CONTROL CABLE, 4 COND PLUG
1 0310-235B O-RING, 3.109 X 3.387,BUNA N
2 NB0491P01 LSH STRAP, FLEXIBLE
4 NA0025P01 SCREW,PLASTITE,#10X1.25
1 NB0357G03 BARBED FTG, M20, EXTENDED W/ O-RING
1 PA1815P01 HOSE CLAMP,7/16,NYLON
1 NA0766G01 CONNECTOR, M20, W/ORING
4 PA0491P01 TERMINAL,FLAG,18-22GA,RD
1 NB0520P01 LSA CONNECTOR LOCK

2220 contains: CONTROL COVER, DRY WELL, HW, SERVICE

Qty Part Number Description
1 ND0148P01 CONTROL COVER, 2-PORT
1 NA0002P01 PLUG, 1/8"NPT, SS
7 0719-3218SS NUT, STOP, (ELASTIC), SS, 5/16-18
2 0310-429B 429 O-RING, BUNA N
1 0300-001 POLYETHYLENE BAG WITH ZIPPER
1 NA0161P02 LOCTITE 598, 0.5OZ TUBE
1 NA0778P02 SEAL PLUG, METRIC
1 0310-118B 118 O-RING, BUNA N

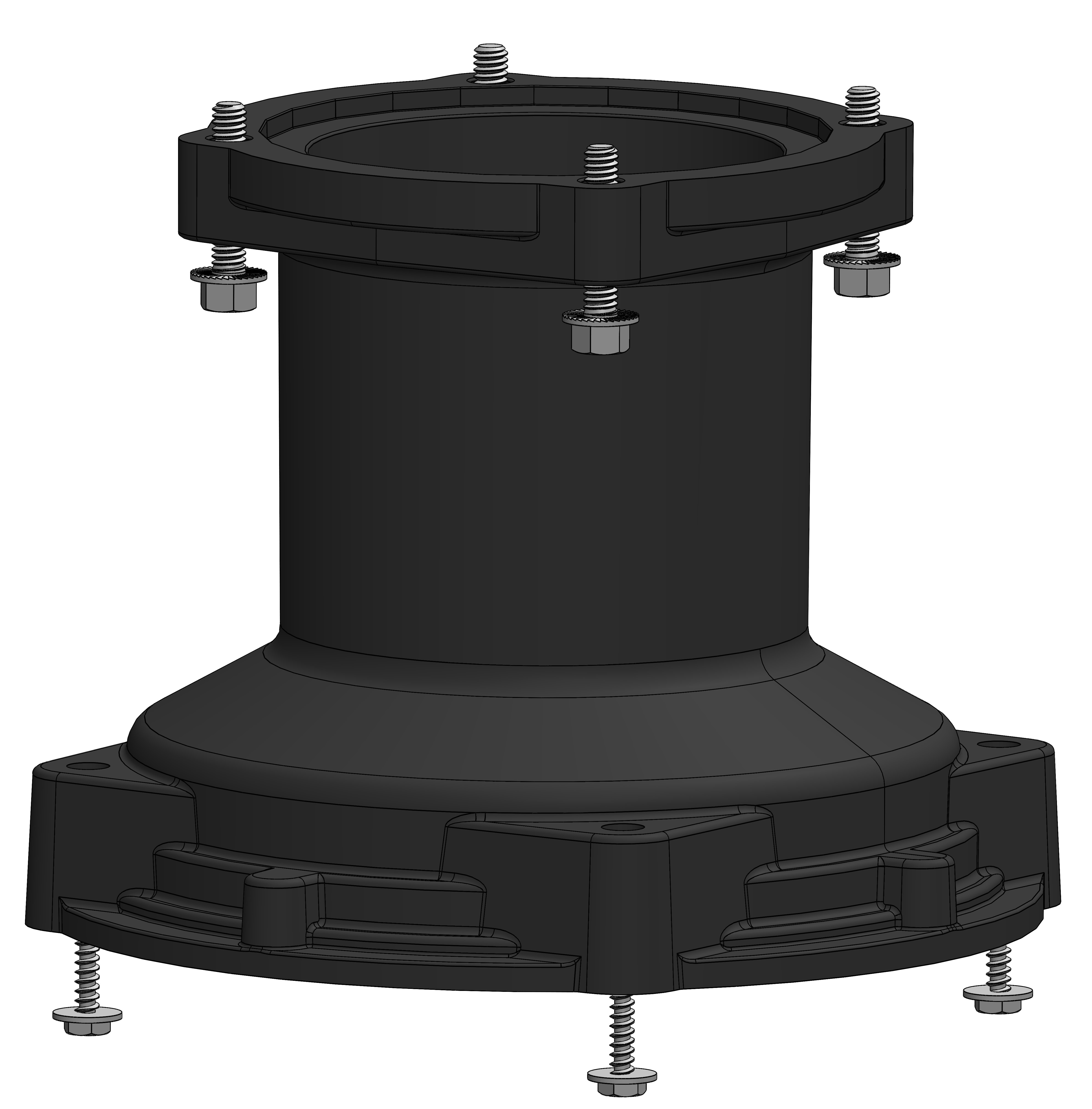

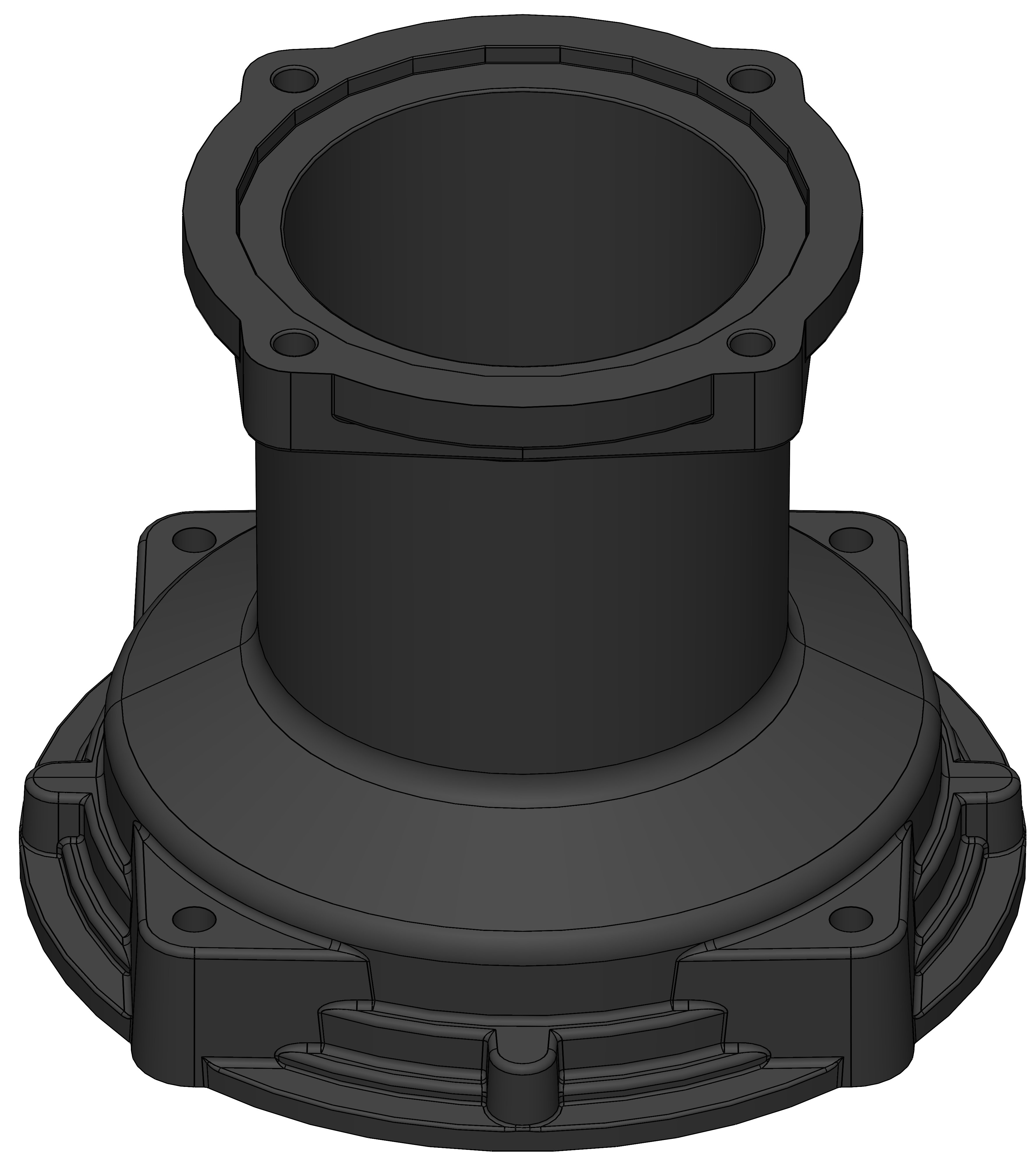

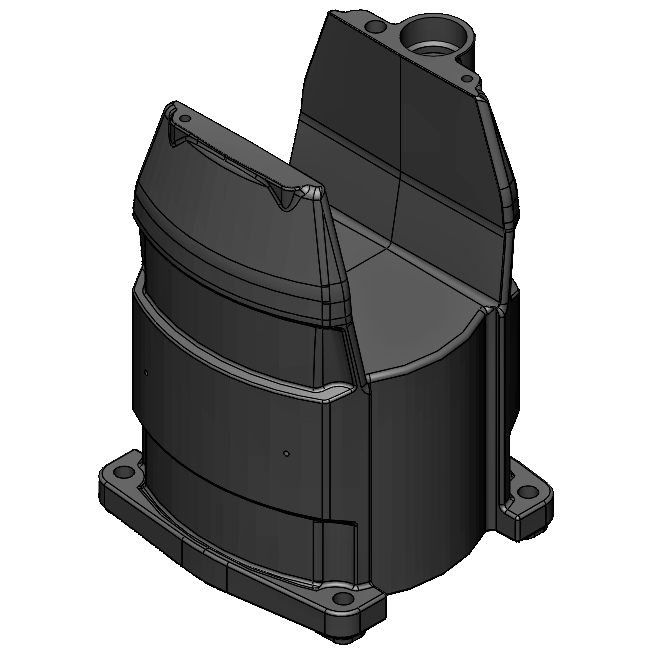

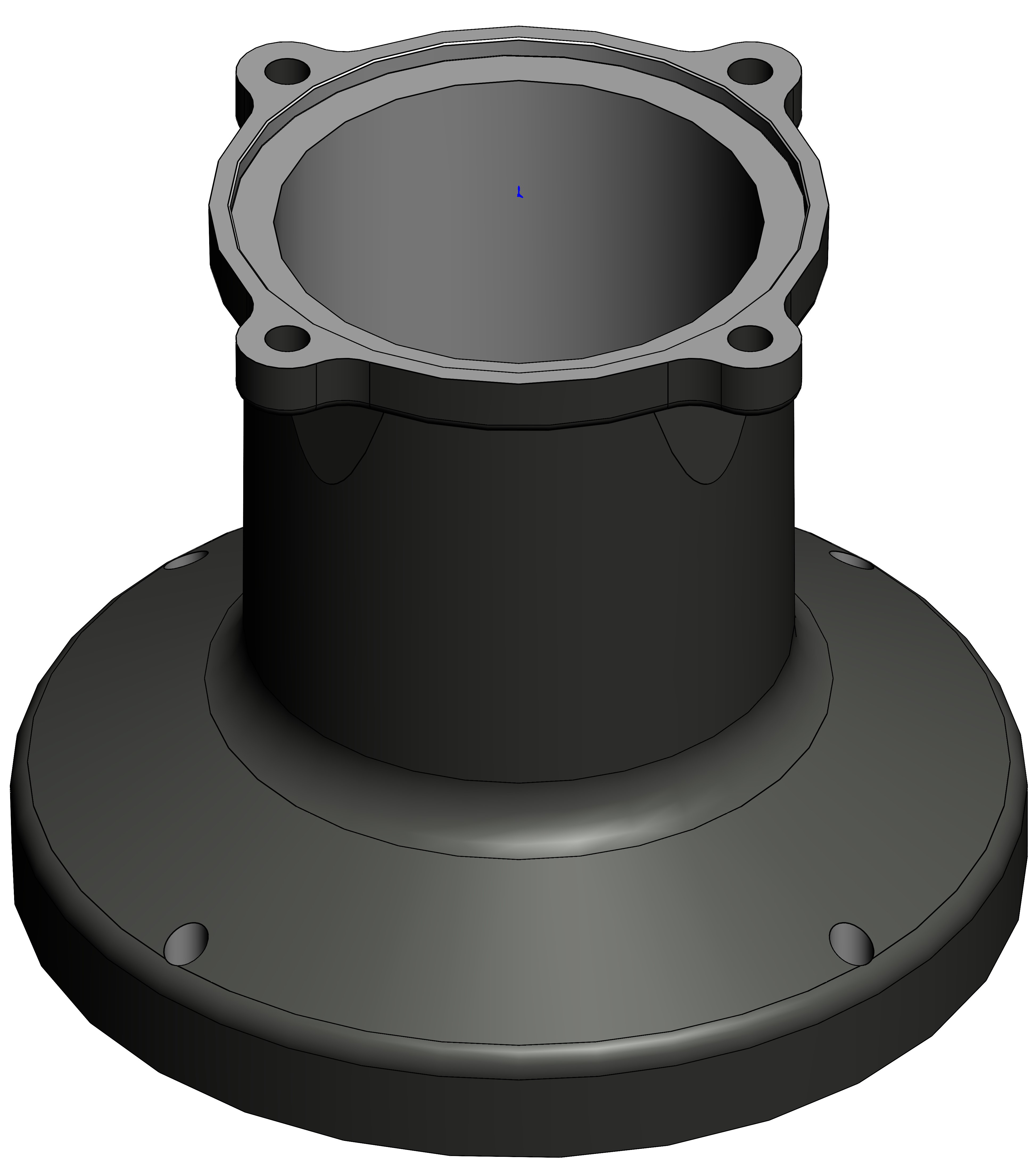

Part Number: NB0552G01
Service Code: 8210

8210 contains: COMPOSITE SUCTION HOUSING SERVICE KIT

Qty Part Number Description
1 ND0119P01 SUCTION HOUSING, COMPOSITE
4 NA0838P01 BOLT, 1/4-20, SERRATED, 1.25"
4 NA0843P02 SCREW, PLASTITE, 48-2 #10-14

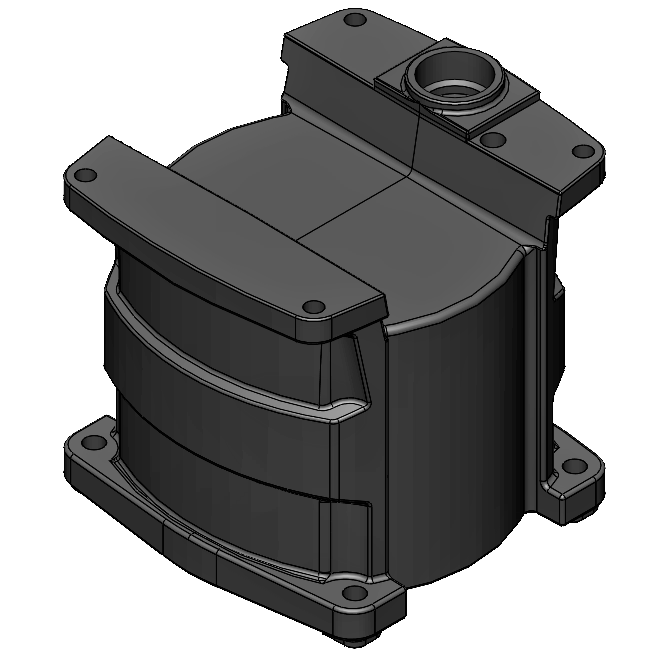

Part Number: NC0039G01
Service Code: 8203

8203 contains: STANDARD STATOR/LINER, SERVICE KIT

Qty Part Number Description
1 PB0011P01 PUMP LINER
1 PC0249P01 STANDARD STATOR, PUMP
1 0302-001 GREASE, SILICONE

Part Number: NC0039G02
Service Code: 8213

8213 contains: M3 STATOR/LINER, SERVICE ASSEMBLY

Qty Part Number Description
1 PB0011P01 PUMP LINER
1 PC1096P01 M3 STATOR, PUMP
1 0302-001 GREASE, SILICONE

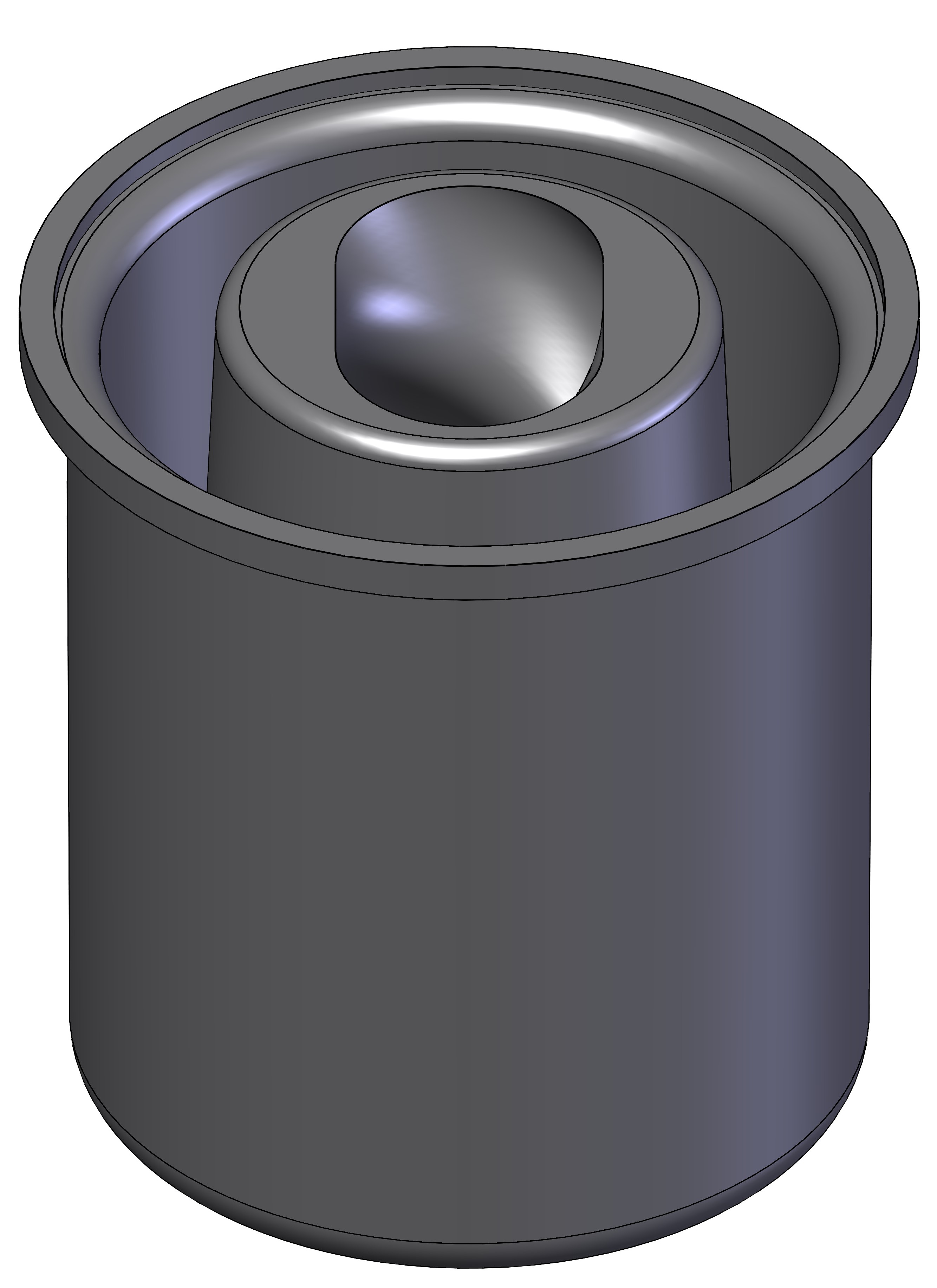

Part Number: NC0039G04
Service Code: 8003

8003 contains: STANDARD STATOR, NO LINER, SERVICE KIT

Qty Part Number Description
1 PC0249P01 STANDARD STATOR, PUMP
1 0302-001 GREASE, SILICONE

Part Number: NC0039G05
Service Code: 8013

8013 contains: M3 STATOR, NO LINER, SERVICE ASSEMBLY

Qty Part Number Description
1 PC1096P01 M3 STATOR, PUMP
1 0302-001 GREASE, SILICONE

Part Numbers: NB0552G01 and NC0039G04
Service Codes: 8210 and 8003

8210 contains: COMPOSITE SUCTION HOUSING SERVICE KIT

Qty Part Number Description
1 ND0119P01 SUCTION HOUSING, COMPOSITE
4 NA0838P01 BOLT, 1/4-20, SERRATED, 1.25"
4 NA0843P02 SCREW, PLASTITE, 48-2 #10-14

8003 contains: STANDARD STATOR, NO LINER, SERVICE KIT

Qty Part Number Description
1 PC0249P01 STANDARD STATOR, PUMP
1 0302-001 GREASE, SILICONE

Part Numbers: NB0552G01 and NC0039G05
Service Codes: 8210 and 8013

8210 contains: COMPOSITE SUCTION HOUSING SERVICE KIT

Qty Part Number Description
1 ND0119P01 SUCTION HOUSING, COMPOSITE
4 NA0838P01 BOLT, 1/4-20, SERRATED, 1.25"
4 NA0843P02 SCREW, PLASTITE, 48-2 #10-14

8013 contains: M3 STATOR, NO LINER, SERVICE ASSEMBLY

Qty Part Number Description
1 PC1096P01 M3 STATOR, PUMP
1 0302-001 GREASE, SILICONE

Part Number: NC0425G01
Service Code: 1227

1227 contains: WIRELESS TO HARDWIRED CONVERSION KIT (RIGID LSH)

Qty Part Number Description
1 NC0533P01 CONTROL CABLE, 4 COND PLUG
1 NC0534P01 CONTROL CABLE, 4 COND BULKHEAD
1 NA0766G01 CONNECTOR, M20, WITH O-RING
4 PA0491P01 FLAG TERMINAL, 18-22GA, RED
1 NB0520P01 LSA CONNECTOR LOCK
1 NA0869P01 RF TO HW INSTRUCTION, RIGID LSH

Part Number: NC0563G01 and NC0564G01
Service Code: 1231 and 2241

1231 contains: STANDARD LSH SERVICE ASM (RIGID LSH)

Qty Part Number Description
2 ND0147P01 LSH, EXTREME, RIGID
1 NB0031P01 PRESSURE SWITCH, ON/OFF
1 NB0031P02 PRESSURE SWITCH, ALARM
1 NC0521P01 LSH SEAL COUPLING
2 NC0533P01 CONTROL CABLE, 4 COND PLUG
1 0310-235B 235 O-RING, BUNA N
2 NB0491P01 LSH STRAP, FLEXIBLE
4 NA0025P01 SCREW, PLASTITE, #10X1.25
1 NB0357G01 FITTING, M20, WITH O-RING
1 PA1815P01 HOSE CLAMP, 7/16, NYLON
1 NA0766G01 CONNECTOR, M20, WITH O-RING
4 PA0491P01 FLAG TERMINAL, 18-22GA, RED
1 NB0520P01 LSA CONNECTOR LOCK

2241 contains: STANDARD WET WELL CONTROL COVER SERVICE ASM (RIGID LSH)

Qty Part Number Description
1 ND0148P01 CONTROL COVER, 2-PORT
1 ND0149P01 LSH CAP, WETWELL
1 NC0534P01 CONTROL CABLE, 4 COND BULKHEAD
2 0310-429B 429 O-RING, BUNA N
1 NA0002P01 PLUG, 1/8"NPT, SS
2 0073-7028 SCREW, HEX HD, SS, 5/16-18X1.75
2 0391-004 EYEBOLT, GAPPED, 3.00L, 5/16 UNC, SS
6 0707-7002 WASHER, SS, 5/16"
7 0719-3218SS NUT, STOP, (ELASTIC), SS, 5/16-18
1 NA0161P02 LOCTITE 598, 0.5OZ TUBE
1 NA0828P01 WIRING QR CODE

Part Number: NC0563G01 and NC0564G02
Service Code: 1231 and 2242

1231 contains: STANDARD LSH SERVICE ASM (RIGID LSH)

Qty Part Number Description
2 ND0147P01 LSH, EXTREME, RIGID
1 NB0031P01 PRESSURE SWITCH, ON/OFF
1 NB0031P02 PRESSURE SWITCH, ALARM
1 NC0521P01 LSH SEAL COUPLING
2 NC0533P01 CONTROL CABLE, 4 COND PLUG
1 0310-235B 235 O-RING, BUNA N
2 NB0491P01 LSH STRAP, FLEXIBLE
4 NA0025P01 SCREW, PLASTITE, #10X1.25
1 NB0357G01 FITTING, M20, WITH O-RING
1 PA1815P01 HOSE CLAMP, 7/16, NYLON
1 NA0766G01 CONNECTOR, M20, WITH O-RING
4 PA0491P01 FLAG TERMINAL, 18-22GA, RED
1 NB0520P01 LSA CONNECTOR LOCK

2242 contains: STANDARD DRY WELL CONTROL COVER SERVICE ASM (RIGID LSH)

Qty Part Number Description
1 ND0148P01 CONTROL COVER, 2-PORT
2 NA0006P01 PIN,TOP HOUSING
1 NC0534P01 CONTROL CABLE, 4 COND BULKHEAD
2 0310-429B 429 O-RING, BUNA N
1 NA0002P01 PLUG, 1/8" NPT, SS
1 PB0569P01 GROMMET, BUNA N, TOP HSG
7 0719-3218SS NUT,STOP, (ELASTIC), SS, 5/16-18
1 NC0308G01 TOP HOUSING ASM, STANDARD
2 NC0523P01 LSH CAP, DRYWELL
2 NA0025P02 SCREW, #8-16 x 3/8" PHILLIPS
1 NA0161P02 LOCTITE 598, 0.5OZ TUBE
1 NA0828P01 WIRING QR CODE
E/One Commonly Used Acronyms

ASM = Assembly
AUS = Australia
COND = Conductor
DW = Dry Well
EQD = Electrical Quick Disconnect
FTG = Fitting
HW = Hardwired
IDU = Indoor Unit
INTL = International
LCI = Level Control Interface
LSA = Level Sensor Assembly
LSH = Level Sensor Housing
NPT = National Pipe Thread (American standard thread)
NZ = New Zealand
RF = Radio Frequency (Wireless)
SERV = Service
SS = Stainless Steel
STD = Standard
WW = Wet Well

Download File

Please complete all of the required fields and download will begin immediately. Note: you will only have to complete the form once.
